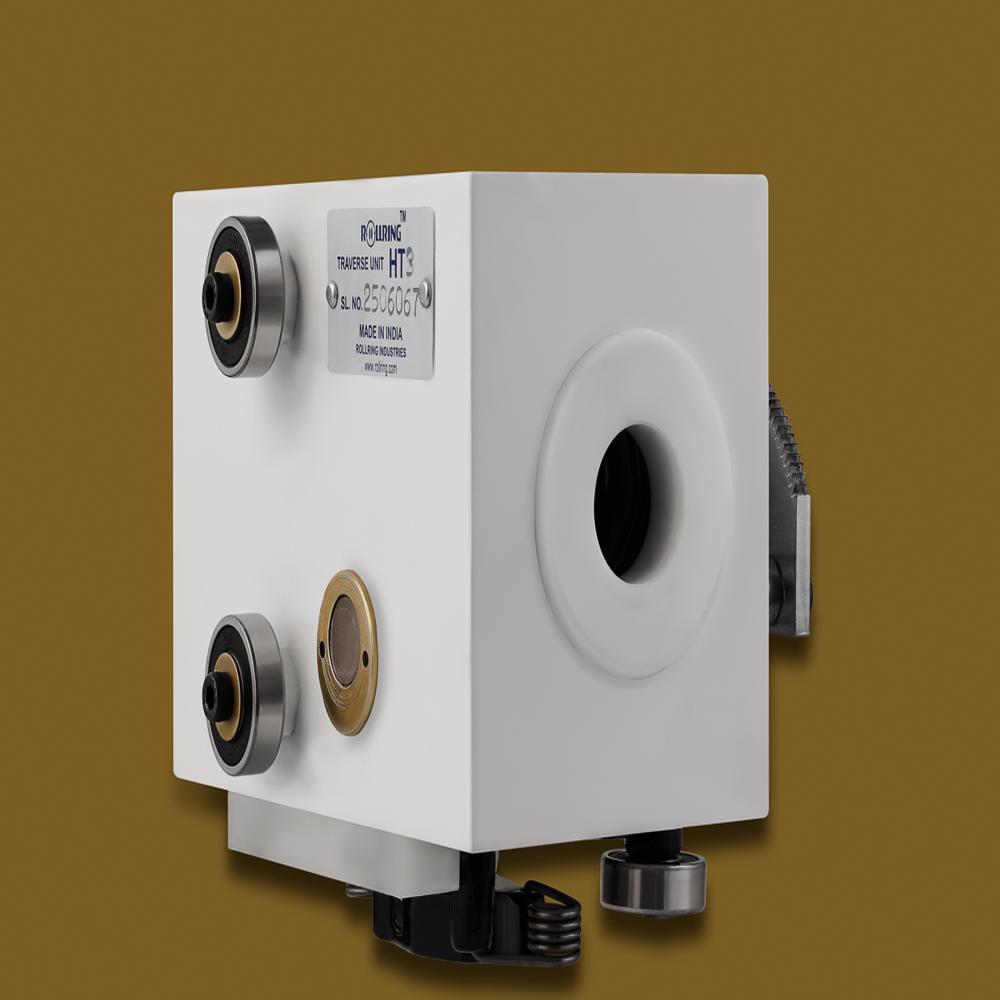

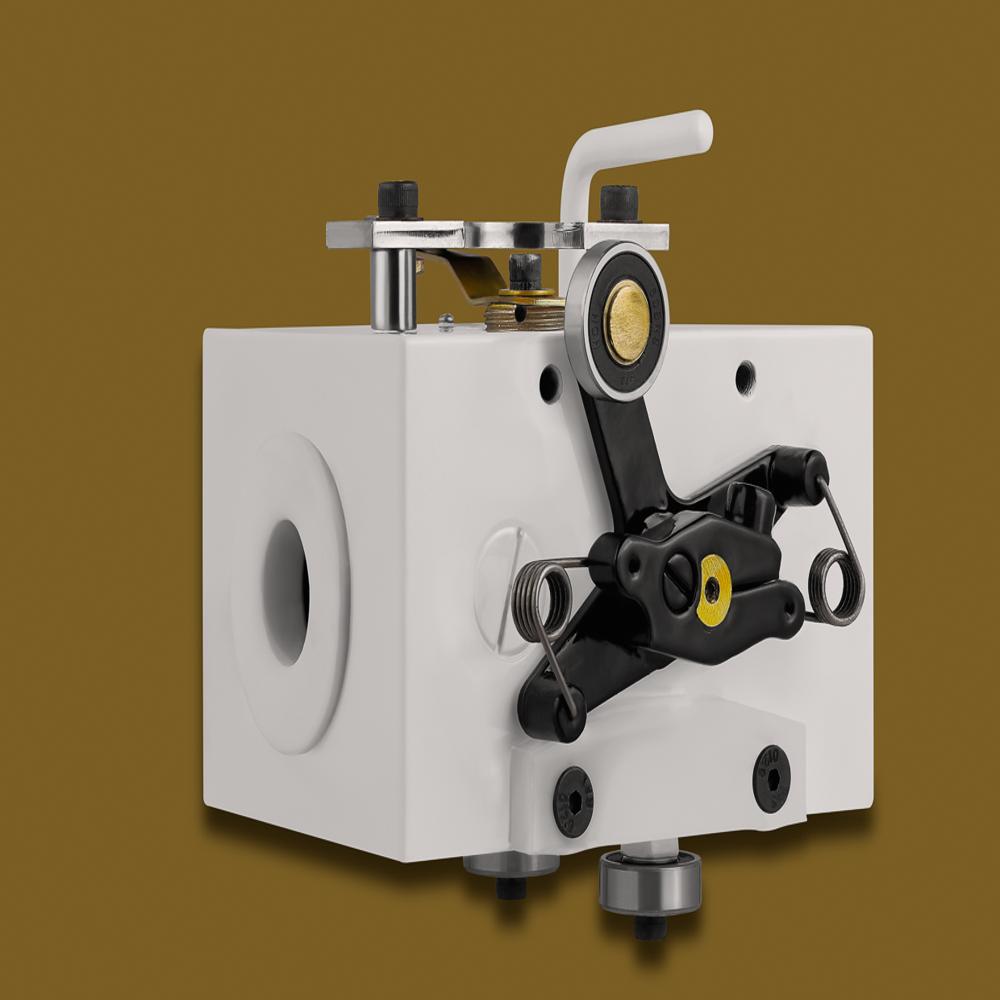

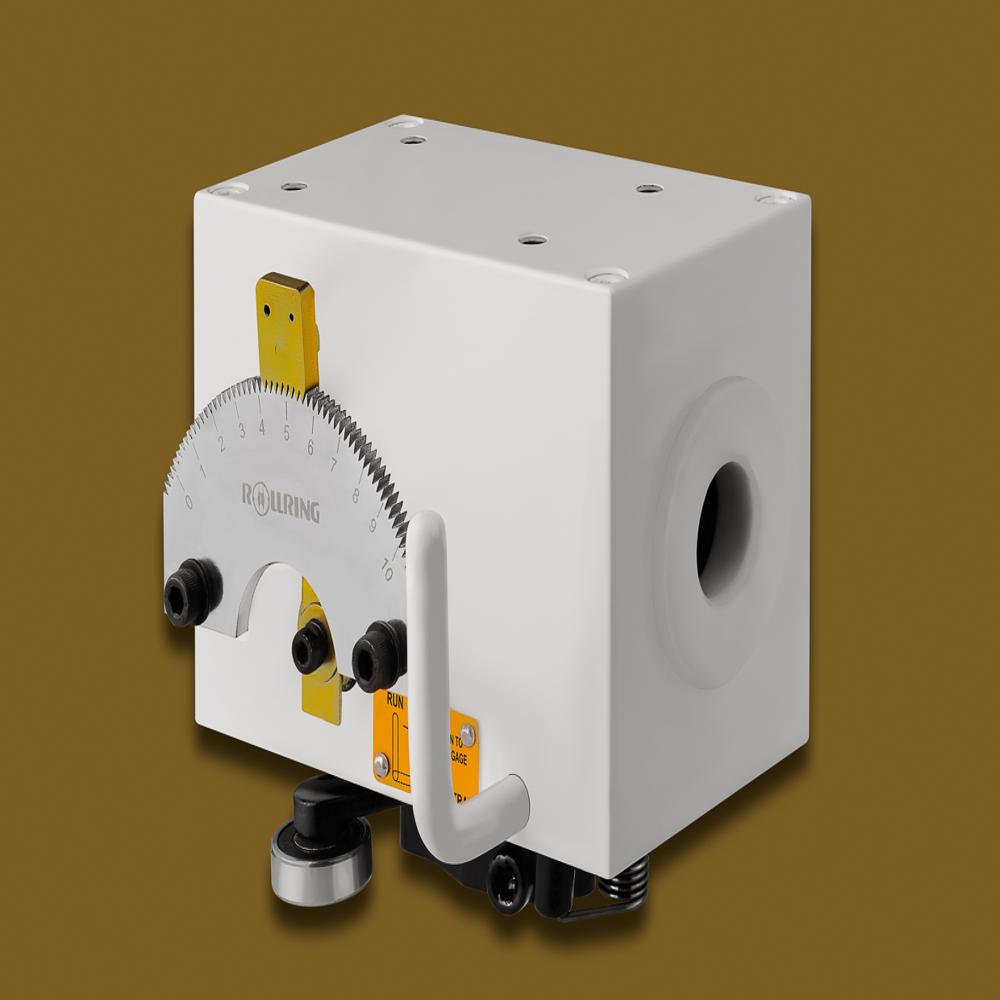

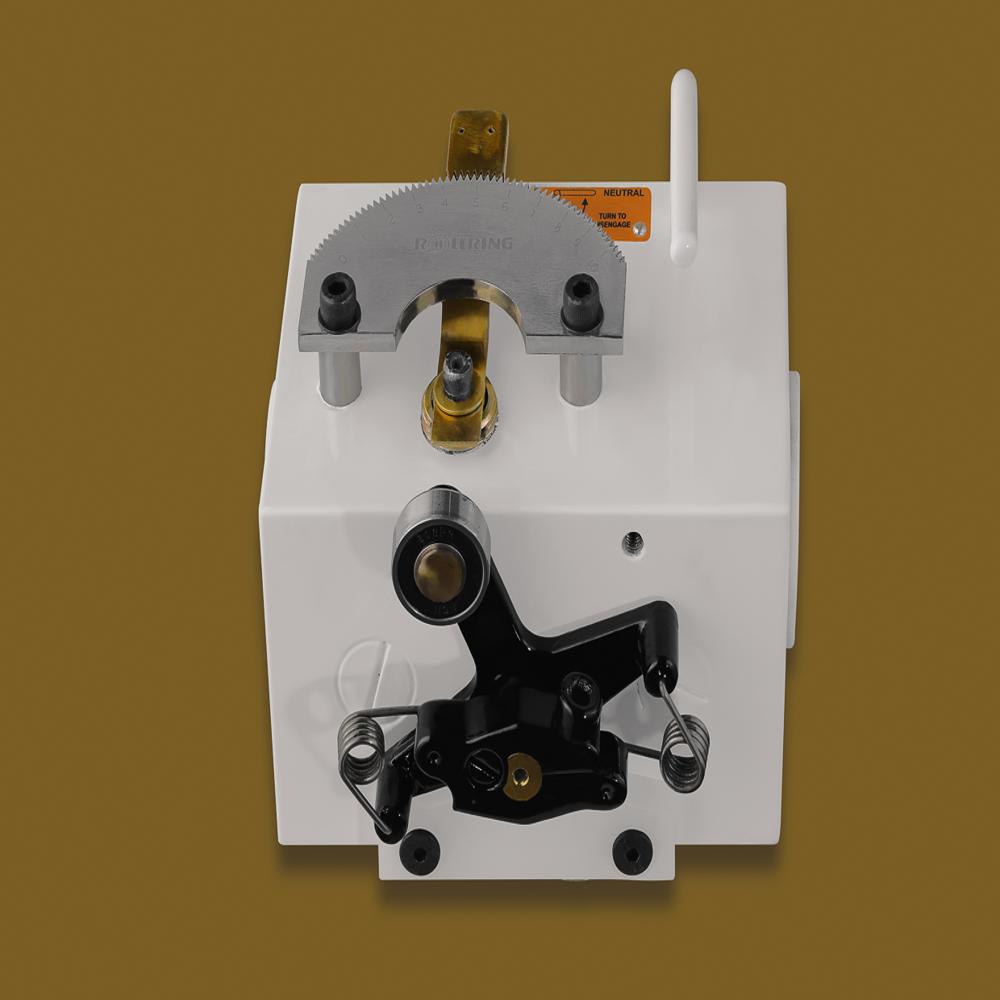

HT3 - 20mm Dia Shaft Traverse Unit

Price 13000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HT3 - 20mm Dia Shaft Traverse Unit Specification

Accuracy
High precision alignment

Control System
Manual Adjustment with Angle Indicator

Features
Compact design, Adjustable traverse angle, Rugged construction

Drive
Mechanical

Noise Level
Low

Lubricating System
Self-lubricated bearings

Production Capacity
Custom

Model No
HT3

Machine Type
Web Guiding / Traverse Unit

Operating Temperature
0C to 50C

Frame Type
Closed, box-type frame

Connectivity Options
Mechanical integration

Product Type
Shaft Traverse Unit

Technology
Precision Mechanical Motion

Power Source
Mechanical

Operating Type
Manual / Semi-Automatic

Surface Treatment
Powder Coated

Dimension (L*W*H)
Approx. 210mm x 180mm x 140mm

Weight (kg)
About 10-12 kg

Color
White / Silver

Usage & Applications
For web guiding and traverse winding in textile, paper, or similar converting machines

Working Speed
Up to 100 m/min (depends on application)

Shaft Diameter
20 mm

Indicator Type
Mechanical protractor dial

Material Construction
Aluminium / Steel (outer casting and shaft support)

Customization
Available for different shaft diameters and traverse lengths

End Support for Shaft
Heavy duty with anti-friction bearing

Traverse Angle Range
0-180 adjustable

Mounting
Base mounting with through holes

Application Sector
Textile, Paper, Foil Winding, Converting Industry

Shaft Motion
Linear and angular adjustment

HT3 - 20mm Dia Shaft Traverse Unit Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HT3 - 20mm Dia Shaft Traverse Unit

Traverse unit model HT3 for 20 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 20mm

Number of Rolling Rings :3

Side Thrust Capacity: 18 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 27 meters per minute

Maximum Pitch: 16 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 1500 RPM

Drive Torque: 0.3 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.
