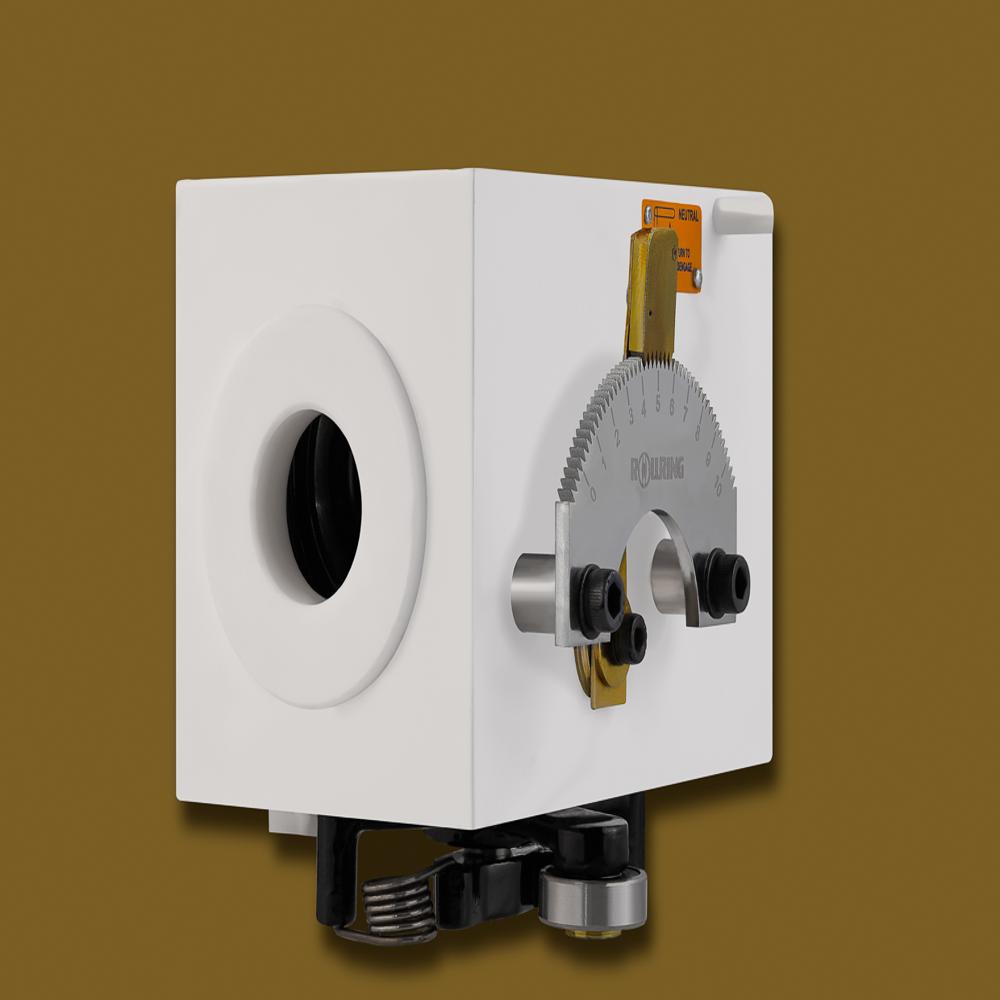

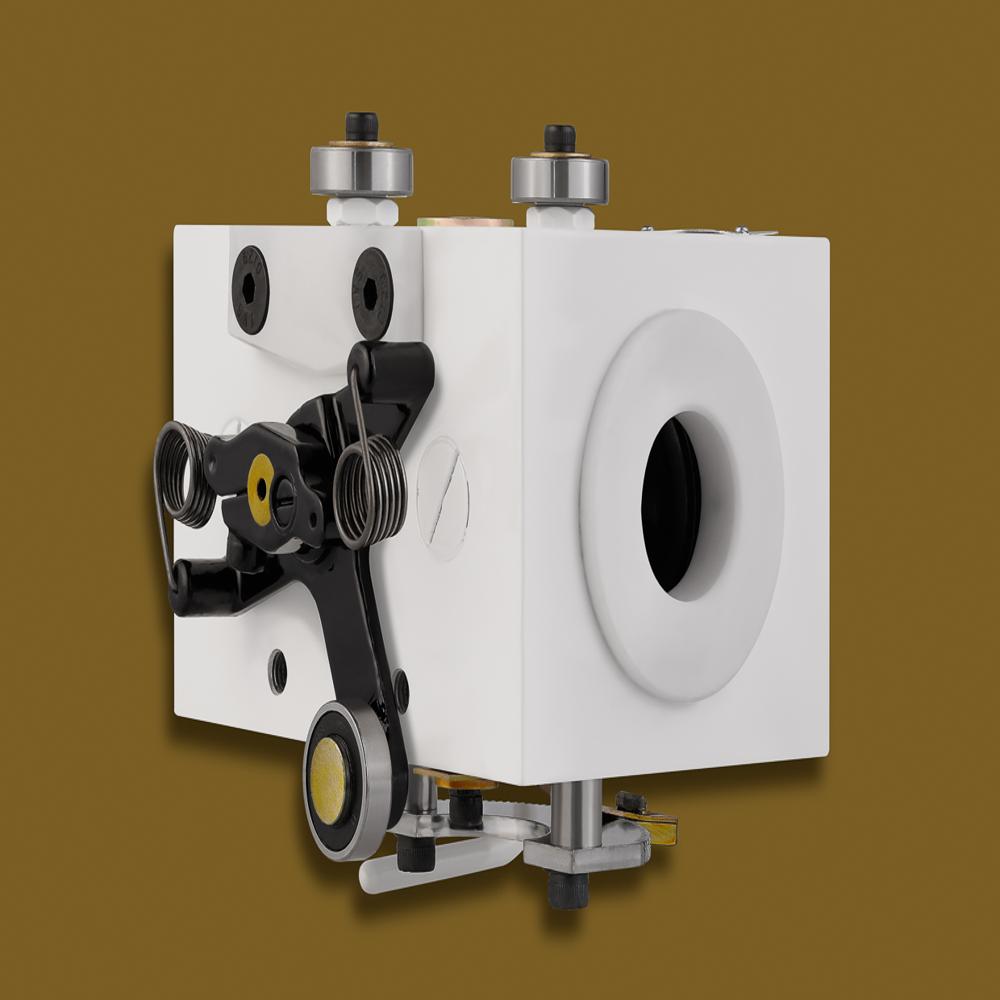

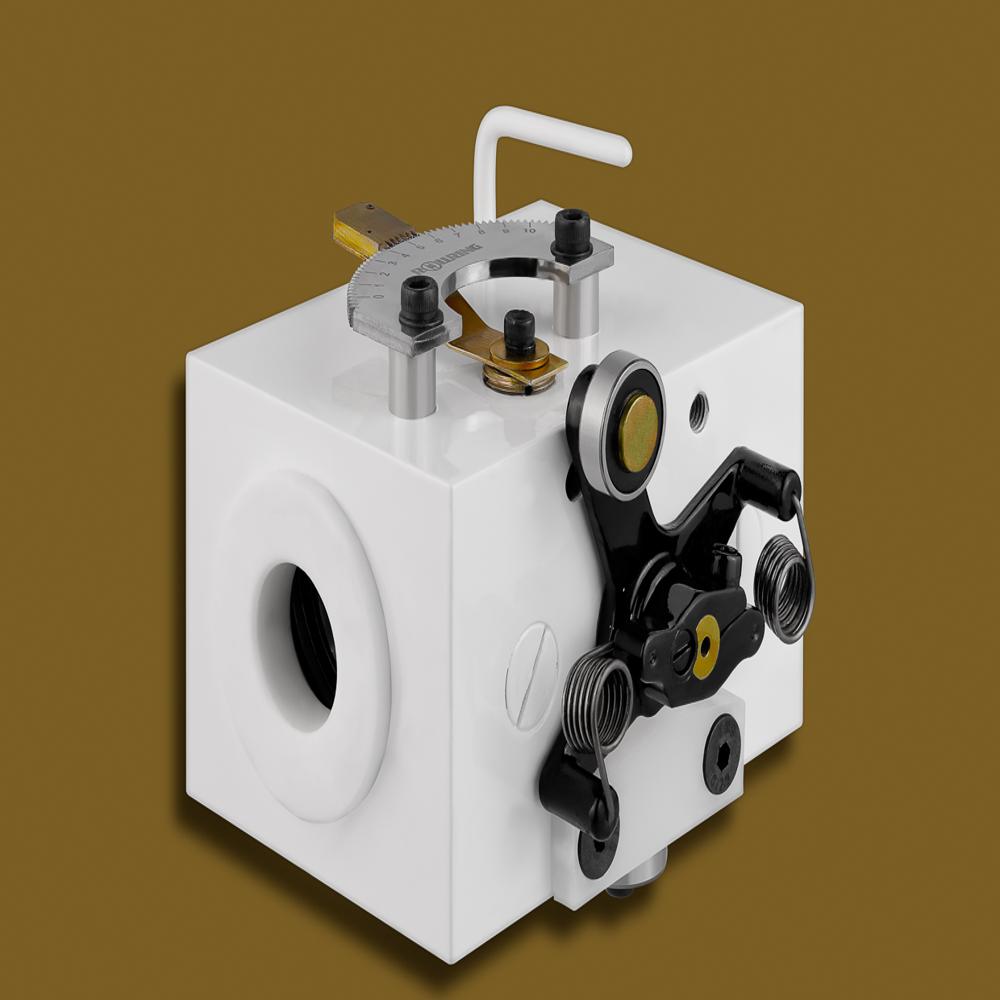

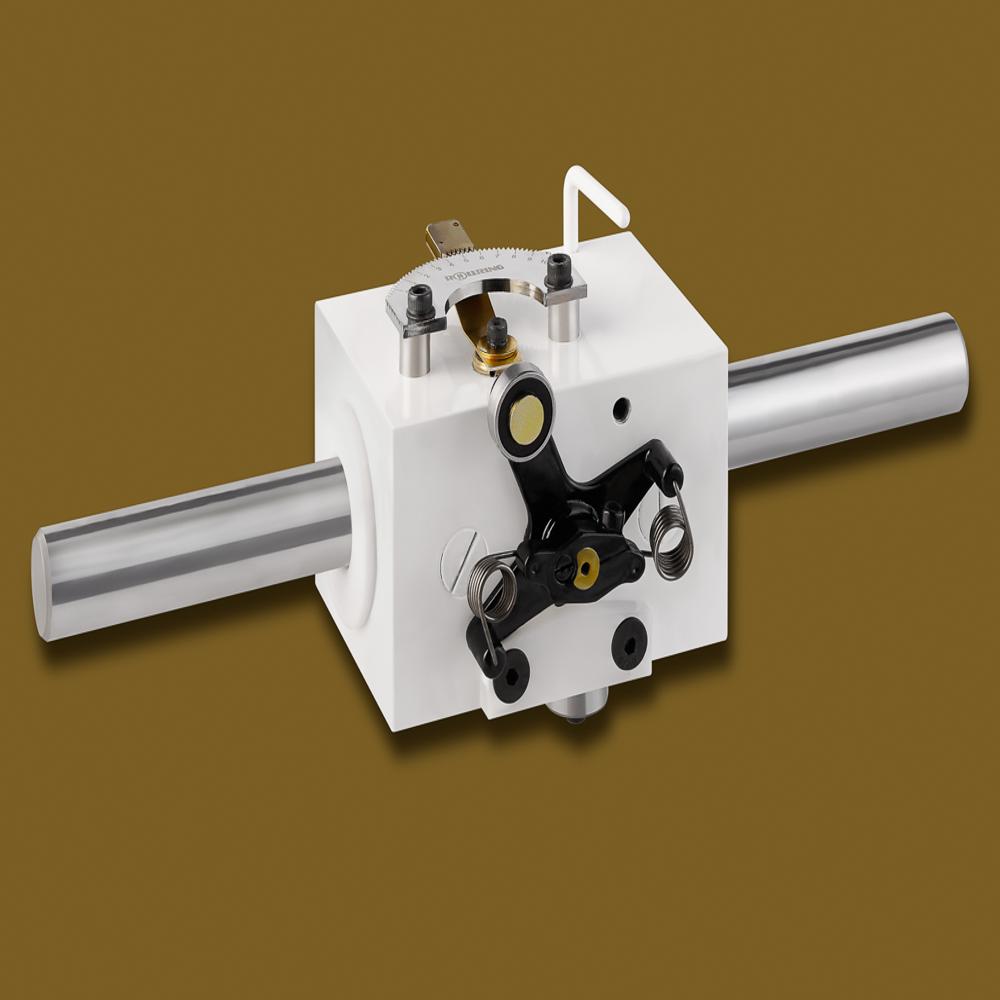

Send InquiryHT3N - 30mm Dia Shaft Traverse Unit
Price 15750.00 INR/ Unit
MOQ : 1 Unit
HT3N - 30mm Dia Shaft Traverse Unit Specification
- Accuracy
- High positioning accuracy ( 0.1 mm)
- Drive
- Shaft driven
- Production Capacity
- Dependent on machine configuration
- Model No
- HT3N - 30mm
- Noise Level
- Low
- Frame Type
- Enclosed Rectangular Housing
- Machine Type
- Traverse Shaft Unit
- Lubricating System
- Manual / Self-lubricated bearings
- Operating Temperature
- 0C to 60C
- Features
- Robust construction, wear-resistant, easy mounting
- Connectivity Options
- Mechanical coupling with standard drive mechanisms
- Product Type
- Traverse Unit
- Technology
- Precision Linear Motion
- Power Source
- Mechanical
- Surface Treatment
- Corrosion-resistant coating / Anodized
- Dimension (L*W*H)
- Customizable, Standard casing fit for 30mm Shaft
- Weight (kg)
- Approx. 2.5-4.0
- Color
- White/Black
- Usage & Applications
- Shaft traversing applications, winding/unwinding equipment, textile, packaging, and printing machinery
- Load Capacity
- Up to 80 kg (depending on design)
- Application Industry
- Textile, Paper, Wire & Cable, Film & Foil
- Installation
- Simple and quick installation
- Compatibility
- Compatible with various machine models and shaft types
- Shaft Diameter
- 30 mm
- Bearings
- High-precision ball bearings
- Roller Material
- Industrial-grade polymer or metal
- Movement Type
- Linear traverse along shaft
- Maintenance
- Low maintenance requirements
- Mounting Type
- Flange/Screw mount
HT3N - 30mm Dia Shaft Traverse Unit Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Units Per Month
- Delivery Time
- 7 Days
- Main Domestic Market
- All India
About HT3N - 30mm Dia Shaft Traverse Unit
Traverse unit model HT3N for 30 mm diameter shaft
Rollring Traverse Units Precision Linear Motion Solutions
Technical Specifications
Shaft Diameter: 30mm
Number of Rolling Rings :3
Side Thrust Capacity: 25 kg
Maximum safe force before the traverse unit slips on the shaft.
Maximum Linear Speed: 24 meters per minute
Maximum Pitch: 24 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).
Maximum Shaft Speed: 1000 RPM
Drive Torque: 1.2 kgcm
High-Performance Rollring Traverse Units
Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:
Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.
Finely Adjustable Linear Speed using a quick lever adjustment.
Variable Stroke Lengths to match different production needs.
Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.
Industrial Applications of Rollring Traverse Units
Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.
Common materials handled:
Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils
Solid Materials: steel, aluminium, copper, rubber, plastic, fibre
Specialty Applications: fibre optic cables, flat materials, heavy gauge cables
From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.
Why Choose Our Traverse Units?
Built for high-speed, high-precision industrial environments
Easy setup and low maintenance
Proven performance in continuous production
Adaptable to various shaft diameters and speeds
