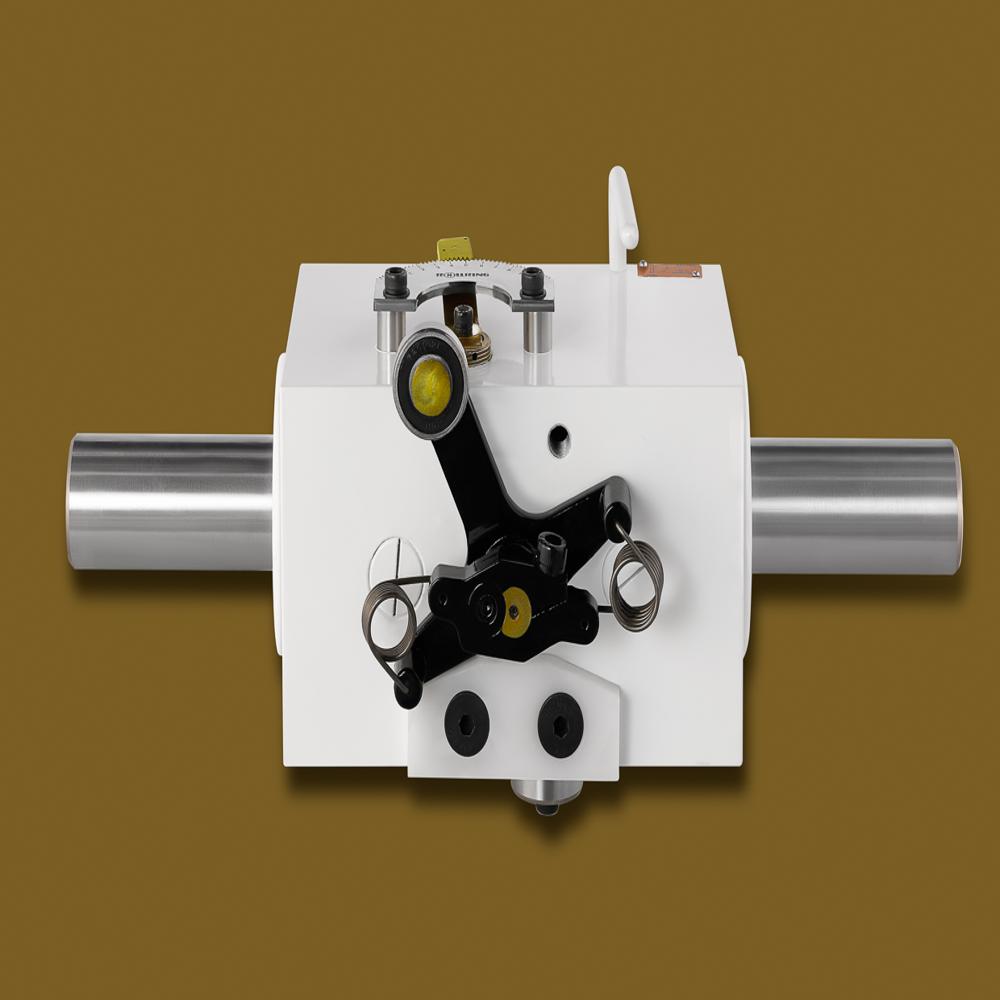

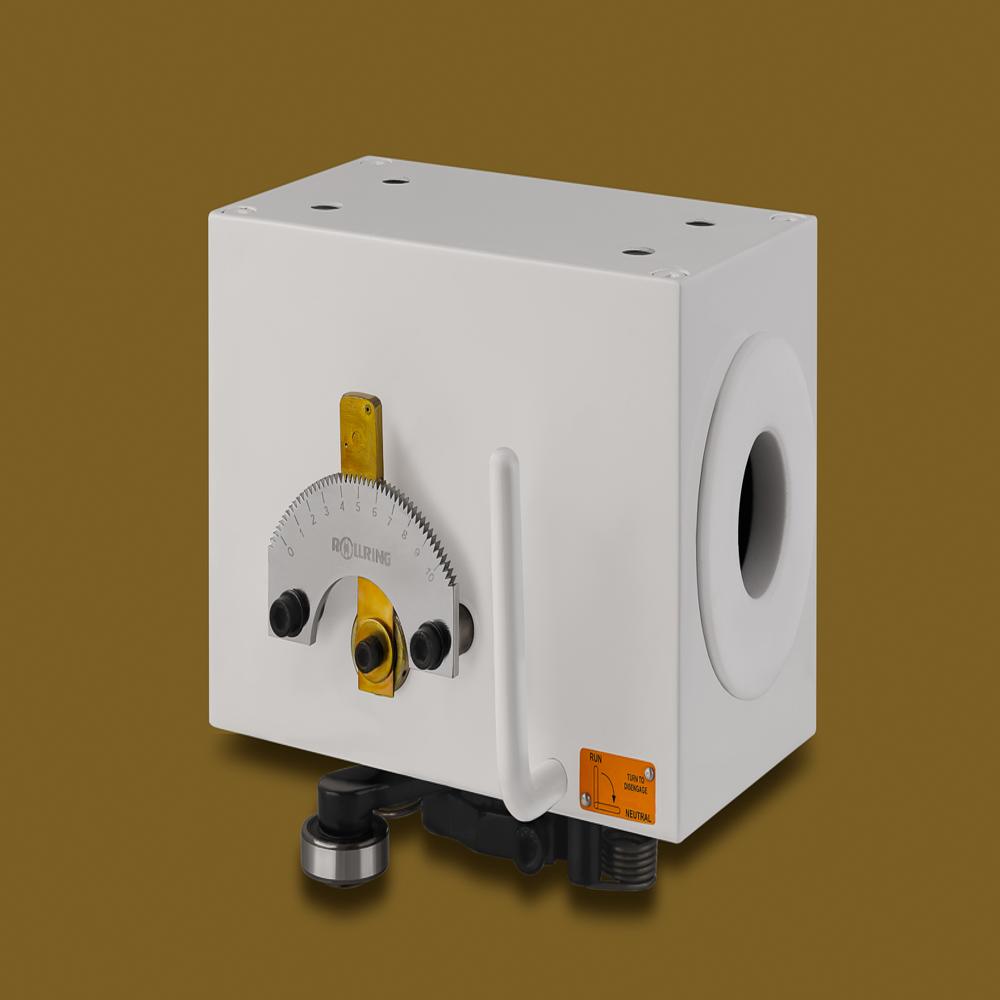

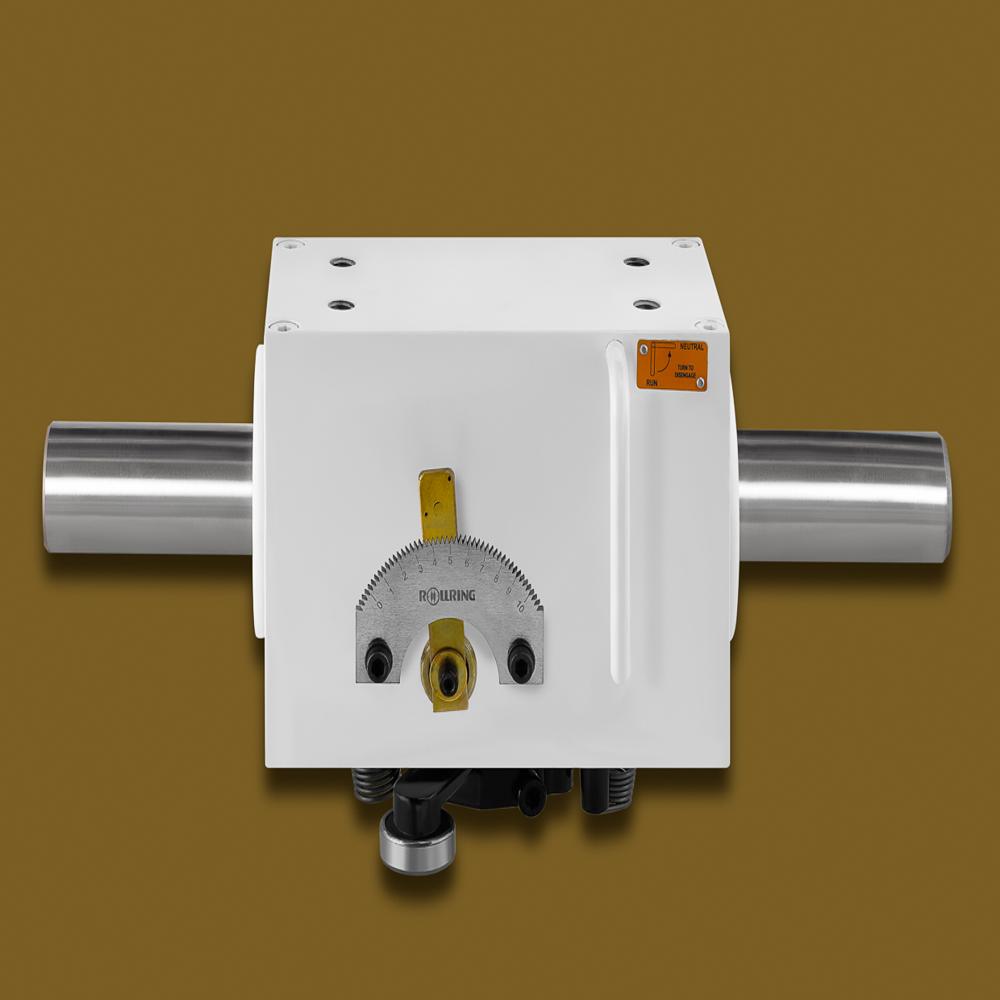

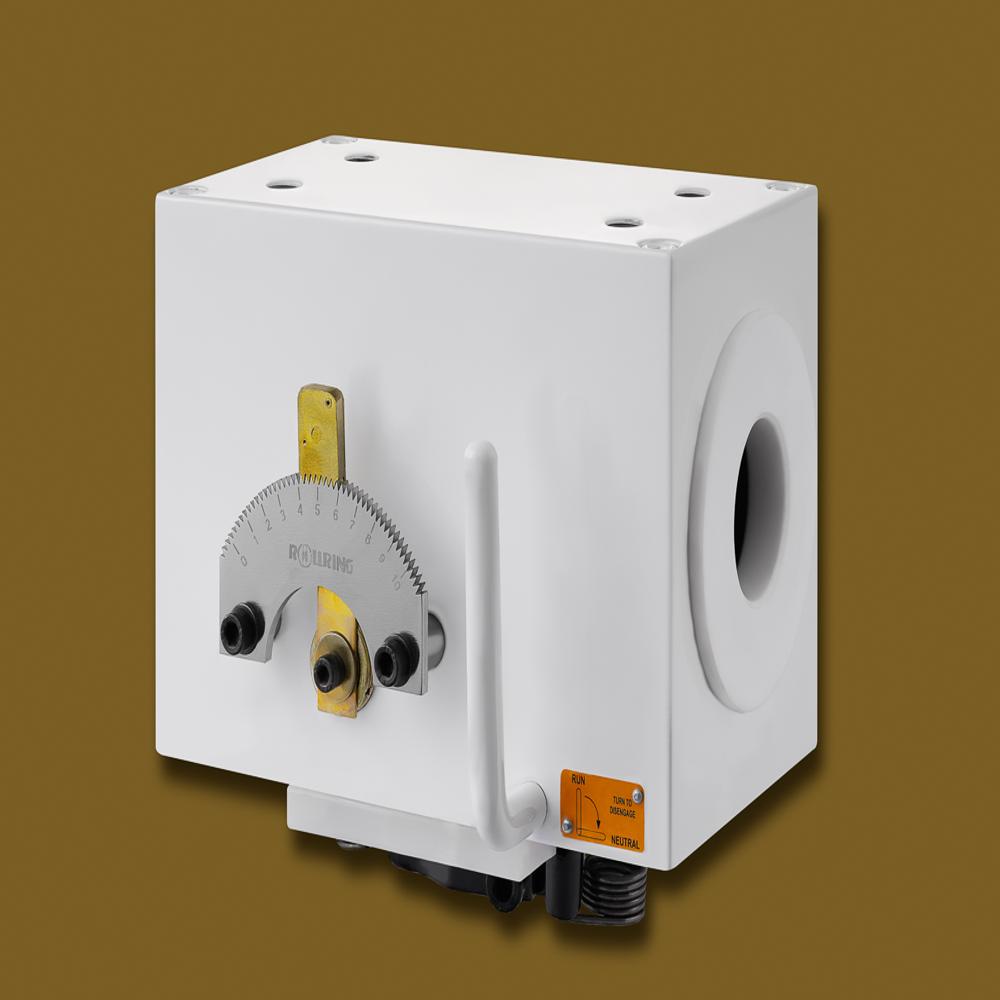

HT4 - 40mm Dia Shaft Traverse Unit

Price 18600.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

HT4 - 40mm Dia Shaft Traverse Unit Specification

Motor Power
Optional 20-30 W geared motor

Cooling System
Natural air cooled

Power Rating
24-36V DC supply recommended

Frequency
50-60 Hz

Connectivity Options
Wired connection with control panel

Drive
Geared Electric Motor

Production Capacity
Custom - as per machine requirement

Control System
Electronic (with optional programmable controls)

Lubricating System
Sealed bearings - maintenance free

Features
Smooth traverse, high durability, compact design, adjustable stroke

Model No
HT4-40mm Dia Shaft

Voltage
220/110V AC or 24V DC

Machine Type
Traverse Unit for Textile/Packaging

Operating Temperature
0C to 50C

Noise Level
<55 dB

Accuracy
0.05 mm (for traverse movement)

Frame Type
Enclosed rectangular housing

Product Type
Traverse Unit

Technology
Mechanical with precision bearings

Power Source
Electric

Operating Type
Automatic

Power
5-50 W (Depending on Application)

Surface Treatment
Powder Coated / Anodized

Dimension (L*W*H)
Approx. 180mm x 130mm x 120mm (varies with configuration)

Weight (kg)
~9 kg

Color
White / Silver

Usage & Applications
For yarn winding, textile machinery traverse guidance

Stroke Adjustment
Manual and programmable options

Bearings
High precision sealed ball bearings

Shaft Diameter
40 mm

Material of Construction
Aluminum alloy with steel inserts

Replacement Parts
Easily available from manufacturer

Application Industry
Textile, Wire & Cable, Packaging, Yarn Processing

Protection Grade
IP50 (basic dust protection)

Maintenance
Minimal, periodic cleaning suggested

Mounting Type
Base/Side Mount (custom as per attachment)

Traverse Length
100-400 mm (customizable)

HT4 - 40mm Dia Shaft Traverse Unit Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HT4 - 40mm Dia Shaft Traverse Unit

Traverse unit model HT4 for 40 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 40mm

Number of Rolling Rings :3

Side Thrust Capacity: 42 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 22.5 meters per minute

Maximum Pitch: 29 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 750 RPM

Drive Torque: 3.5 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.
