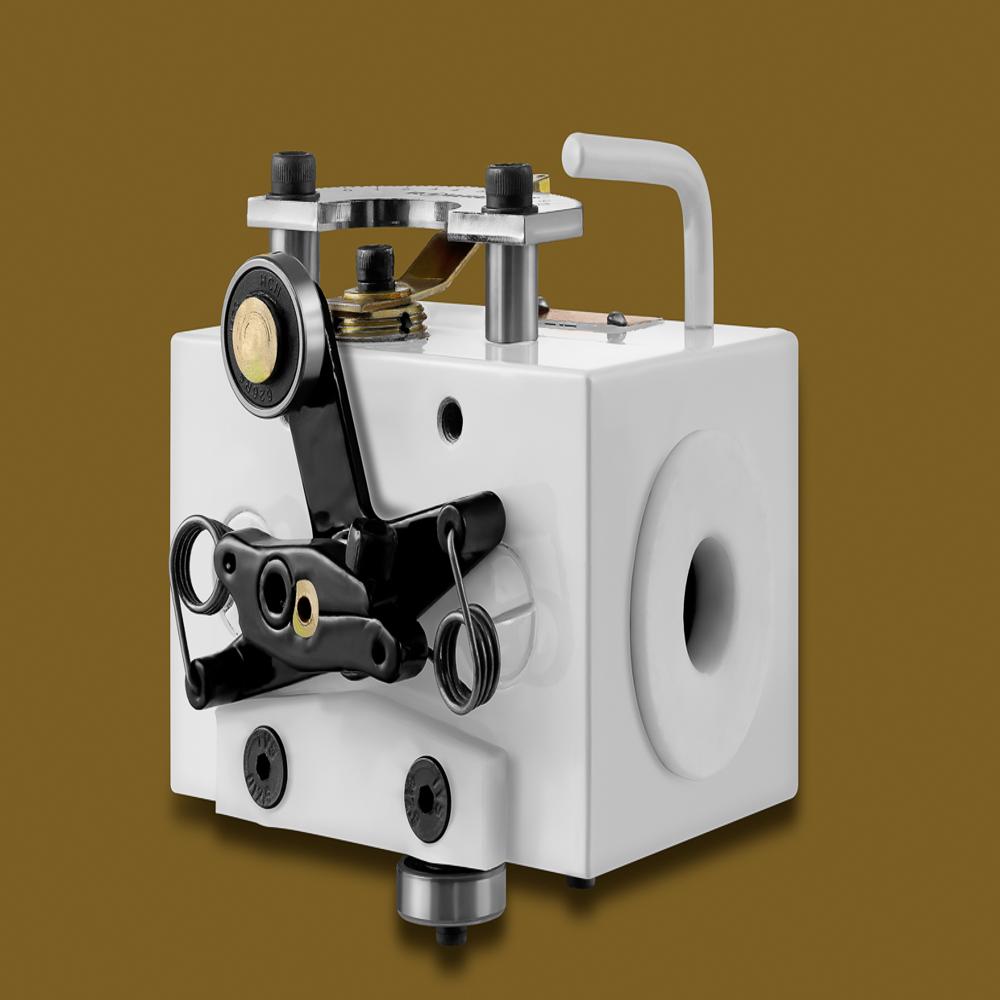

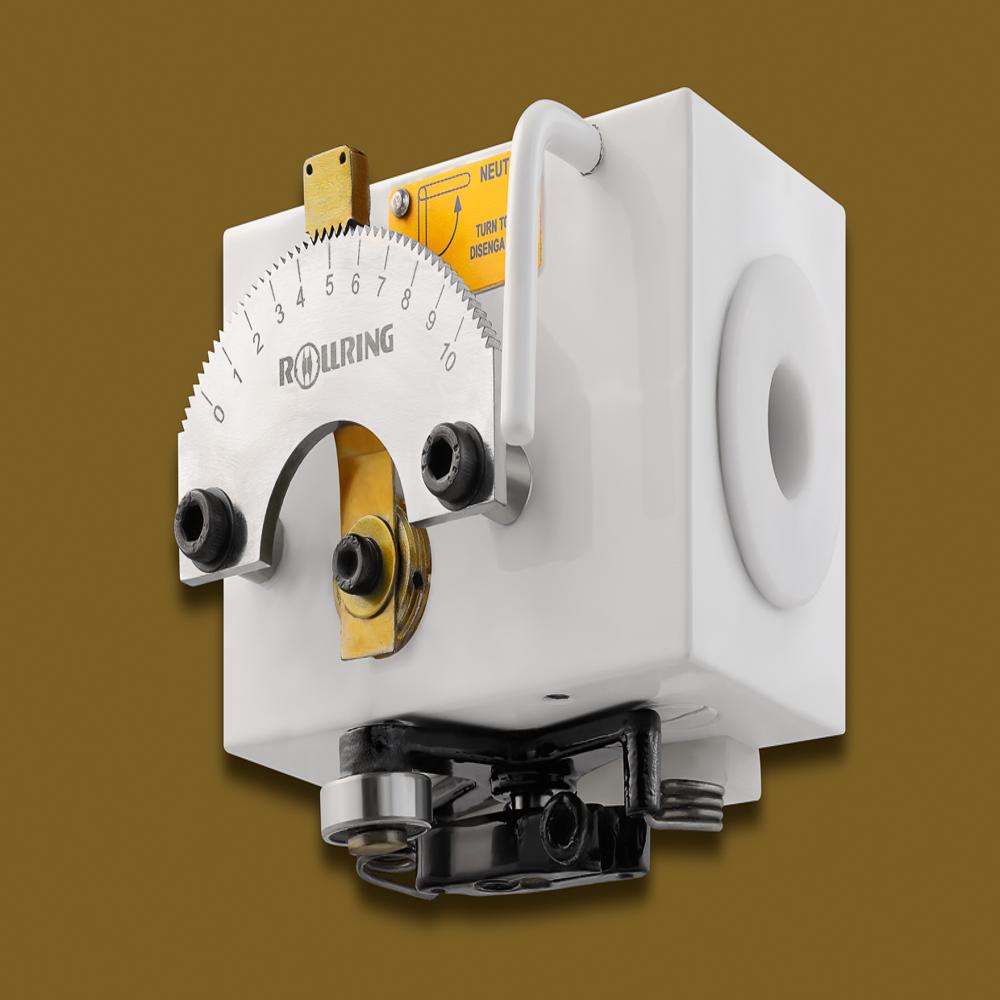

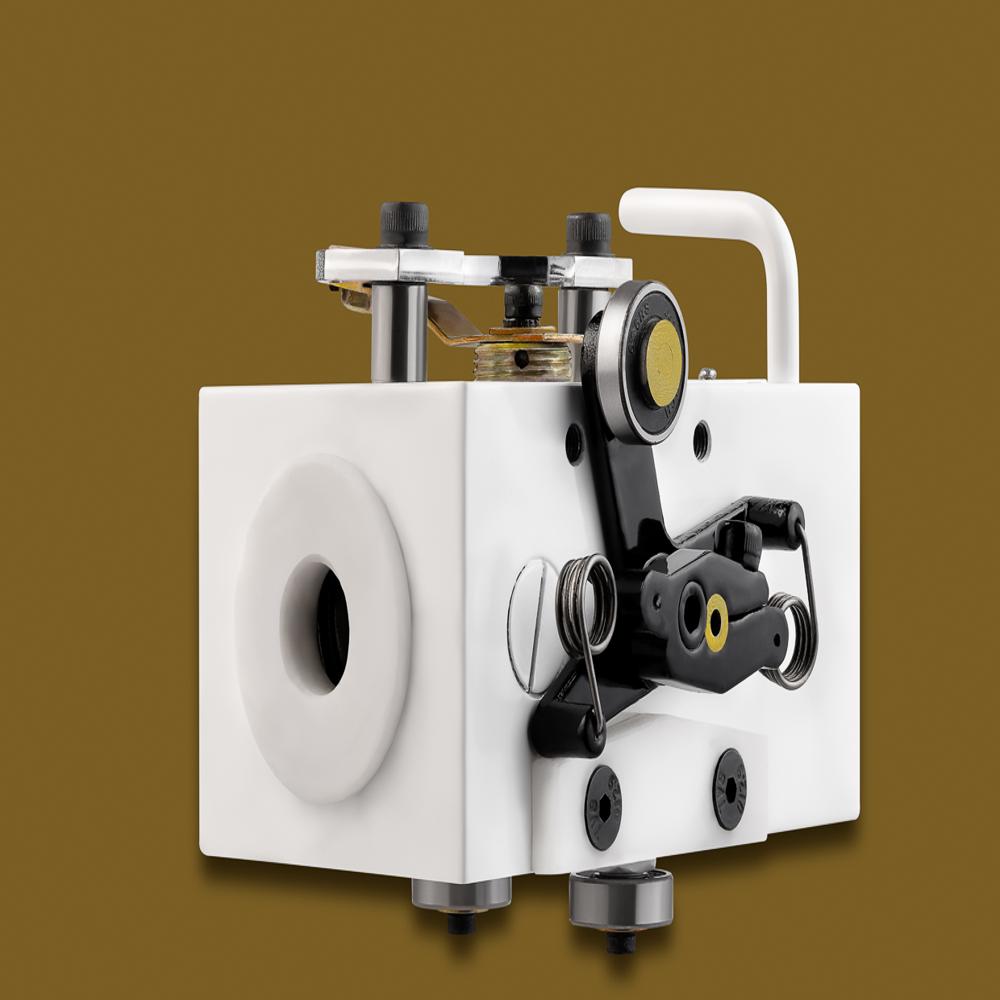

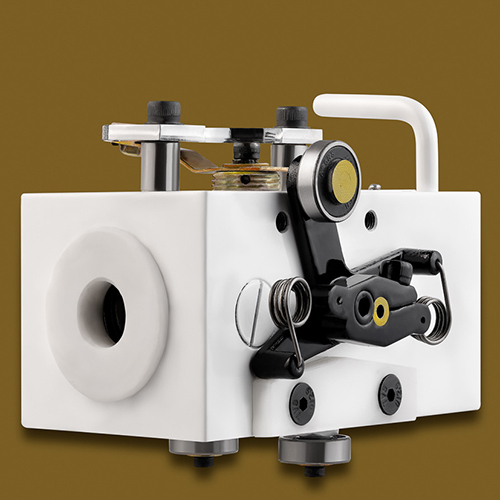

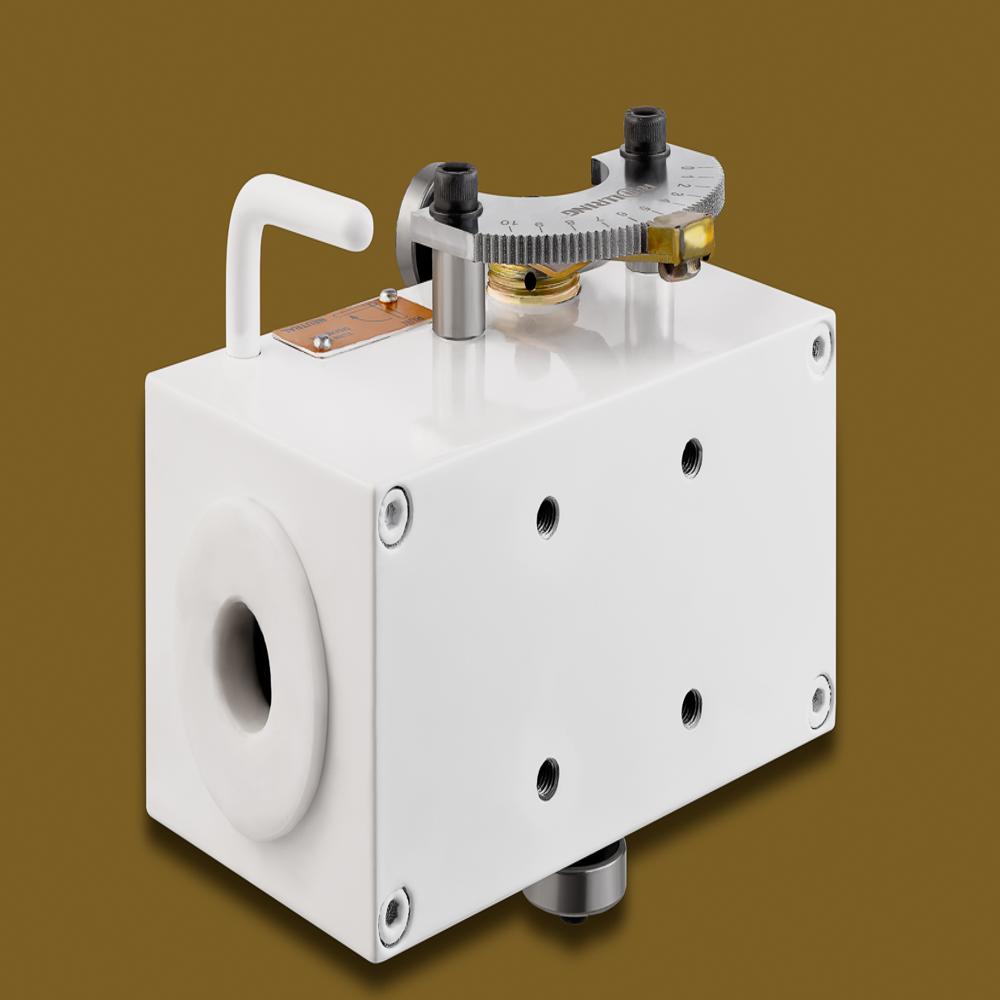

4RR15 - 15 mm dia shaft Traverse Unit

Price 11960.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

4RR15 - 15 mm dia shaft Traverse Unit Specification

Model No
4RR15

Weight (kg)
1.31 Kg

Color
White with black elements

Max Pitch
9.5 mm

Max Side Thrust
18 Kg

Max Linear Speed
19 m/min

Control Type
Manual adjustment

Max Shaft Speed
2000 RPM

Drive Torque Requirement
0.5 Kgcm

Free Movement Lever
FM1

Operation
Linear traverse action

Number of Rolling Rings
4

Material
Metal body construction

Mounting Type
Bolt-on mounting

4RR15 - 15 mm dia shaft Traverse Unit Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About 4RR15 - 15 mm dia shaft Traverse Unit

Traverse unit model 4RR15 for 15 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 15 mm

Number of Rolling Rings :4

Side Thrust Capacity: 18kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 19 meters per minute

Maximum Pitch: 9.5 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 2000 RPM

Drive Torque: 0.5 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.
