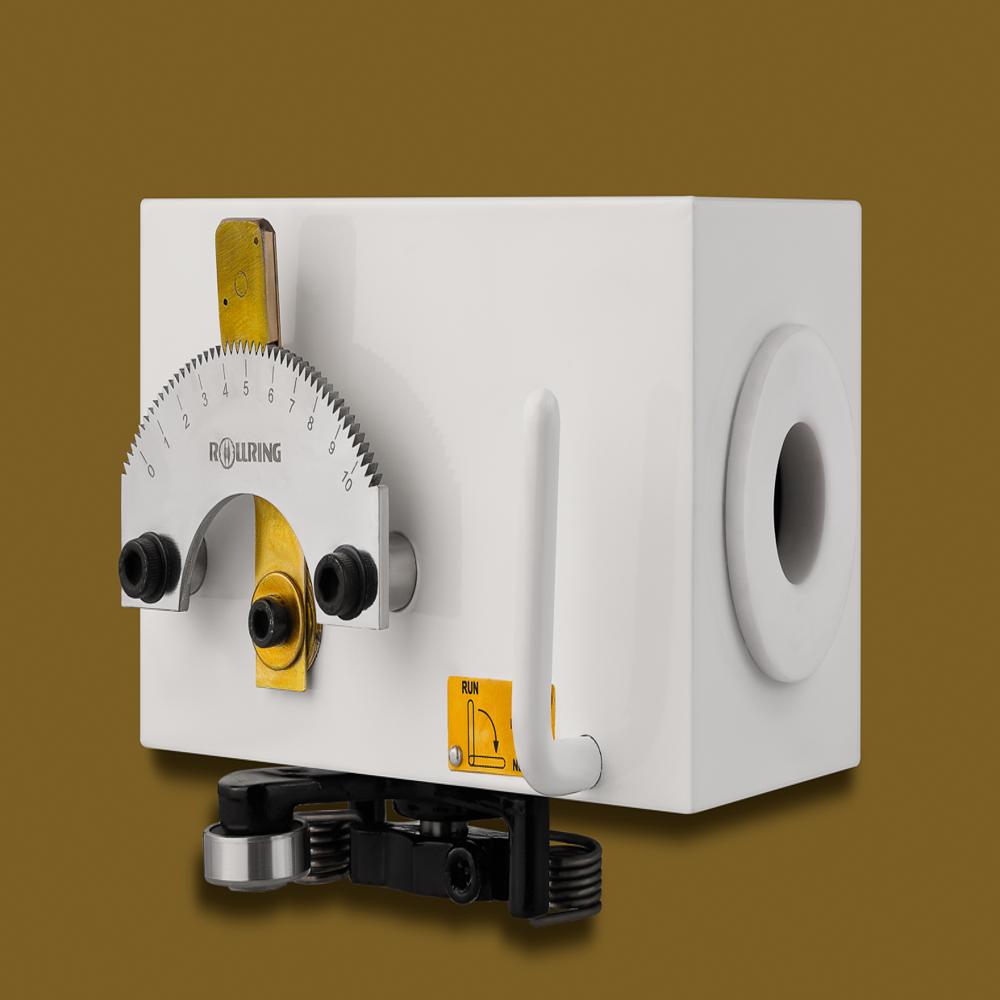

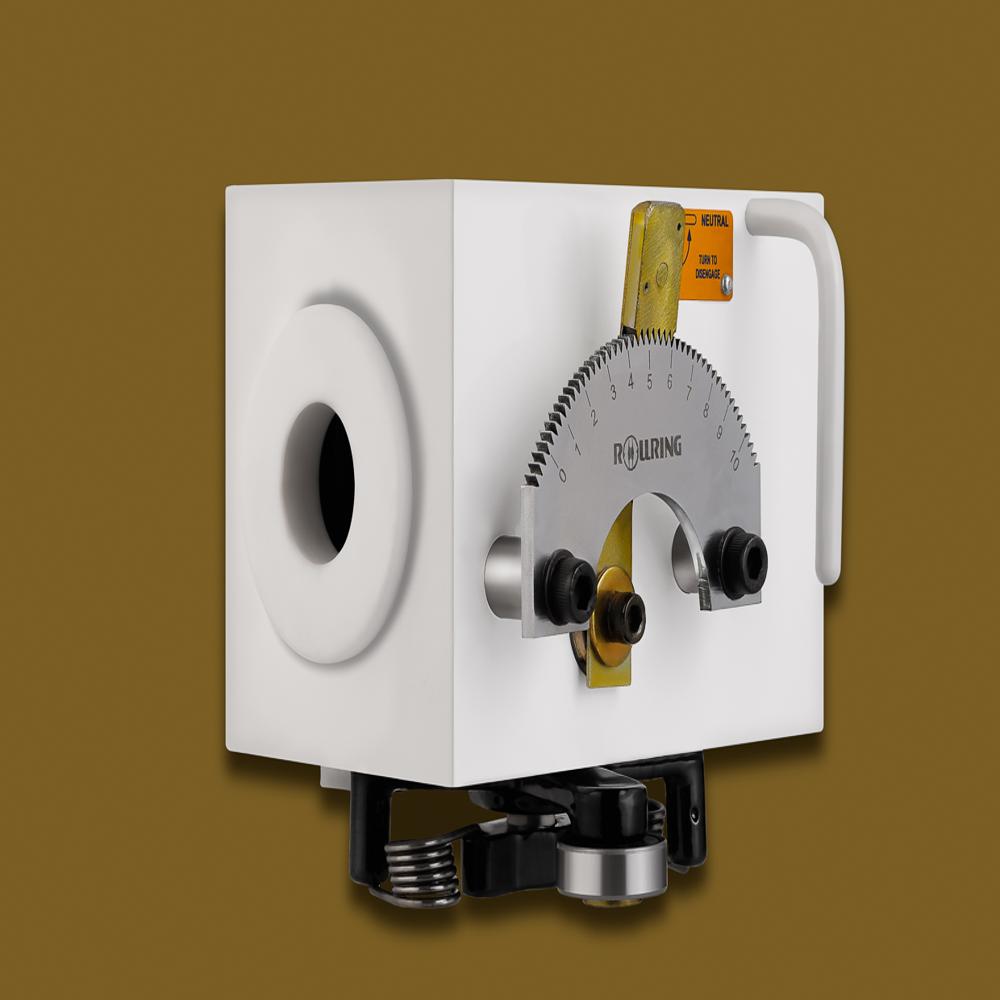

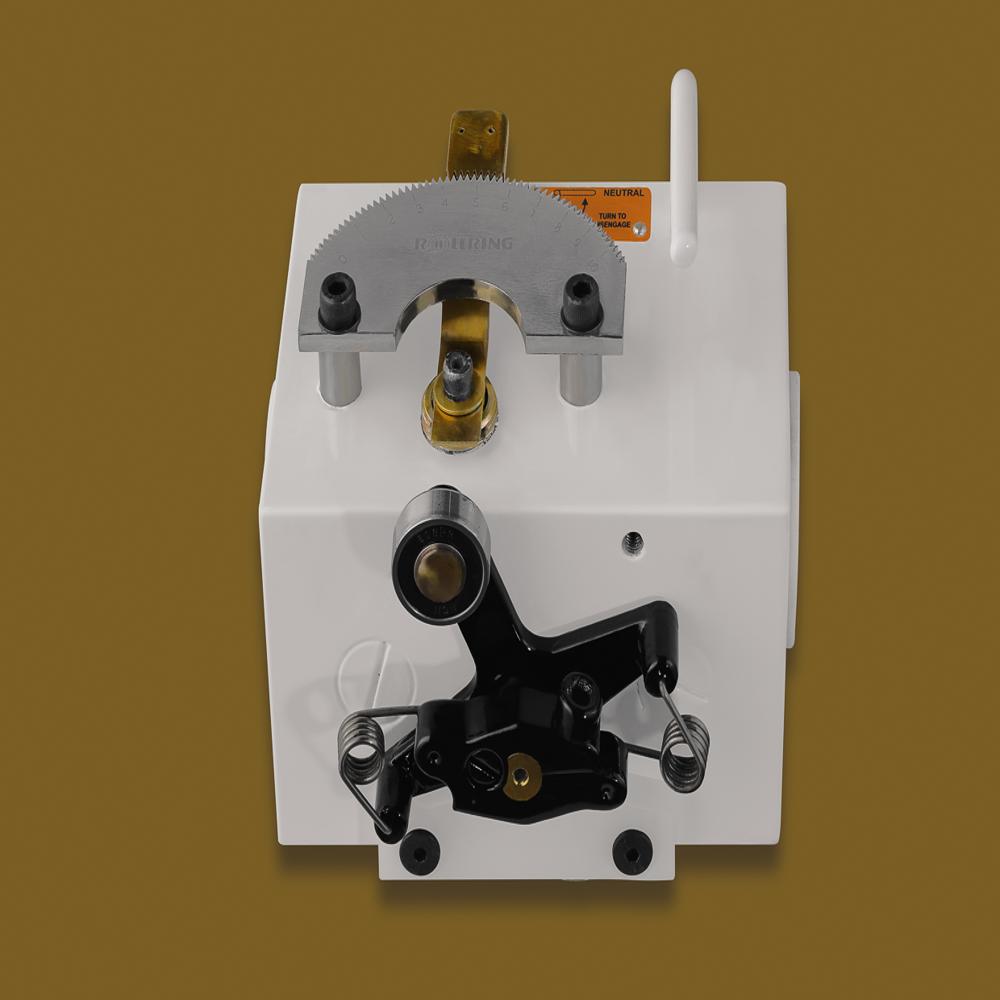

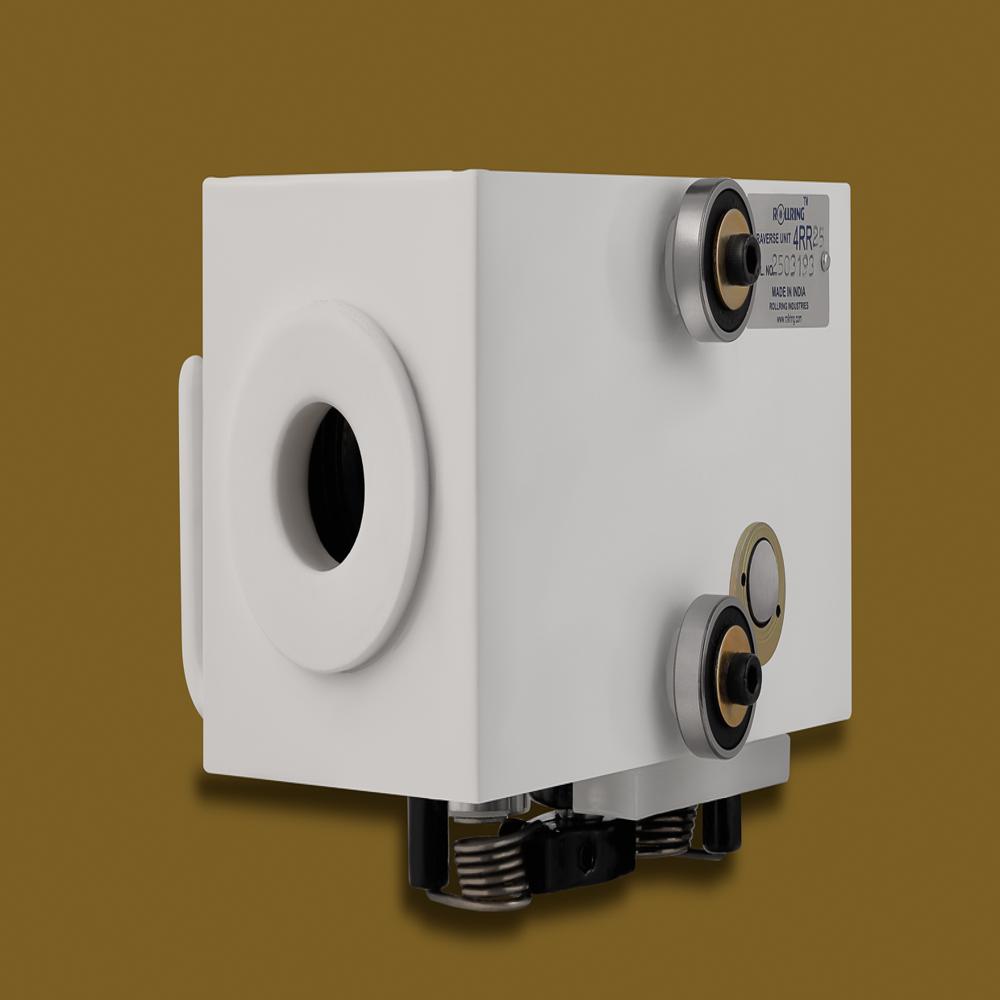

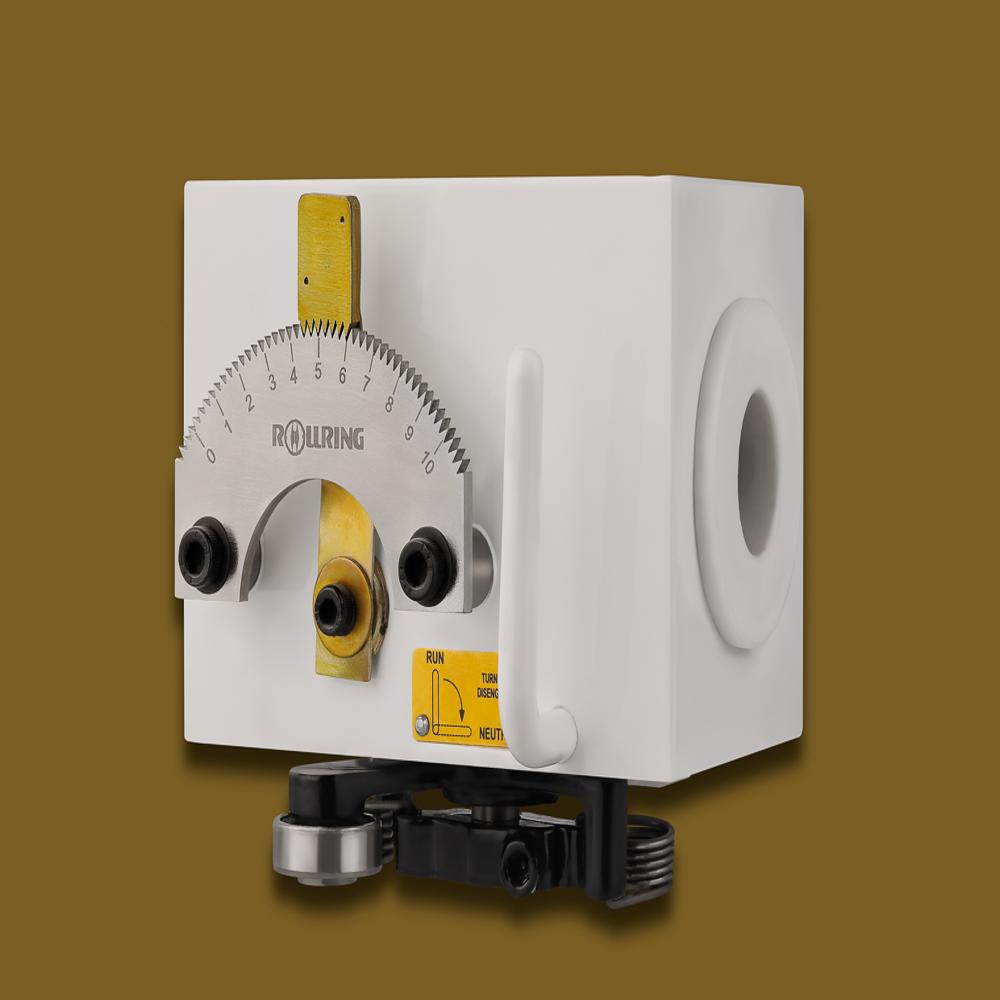

4RR25- 25 mm dia shaft Traverse Units

Price 17430.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

4RR25- 25 mm dia shaft Traverse Units Specification

Machine Type
Traverse Unit

Features
Adjustable Stroke Length, Variable Pitch, High Speed, Compact Size

Model No
HT1, HT2, 4RR15, HT16, 4RR16, HT3, 4RR20, HT22, 4RR22, HT25, 4RR25, HT3N, 4RR30, 3RR40, HT4, 4RR40, HT5, 4RR50, HT6, 4RR60, HT8, 4RR80

Drive
Manual or Motorized

Product Type
Traverse Unit

Power Source
Mechanical Shaft Driven

Operating Type
Mechanical

Surface Treatment
Polished/Coated

Dimension (L*W*H)
Depends on model

Weight (kg)
0.5-38.7

Color
White body with metallic rod

Long service life
Yes

No. of Rolling Rings
3 or 4

Smooth reciprocating motion
Yes

For Layer/Wire Winding
Yes

Max. Linear Speed
11.2-250 Mtrs/min

Side Thrust
5-300 Kg

Maintenance free operation
Yes

Maximum Pitch
5.6-64 mm

Max. Shaft Speed
350-2000 RPM

Self-locking Position
Yes

Drive Torque
0.25-37 Kgcm

Shaft Diameter range
10-80 mm

4RR25- 25 mm dia shaft Traverse Units Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About 4RR25- 25 mm dia shaft Traverse Units

Traverse unit model 4RR25 for 25 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 25mm

Number of Rolling Rings :4

Side Thrust Capacity: 40 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 28.5 meters per minute

Maximum Pitch: 19 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 1500 RPM

Drive Torque: 0.6 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.
