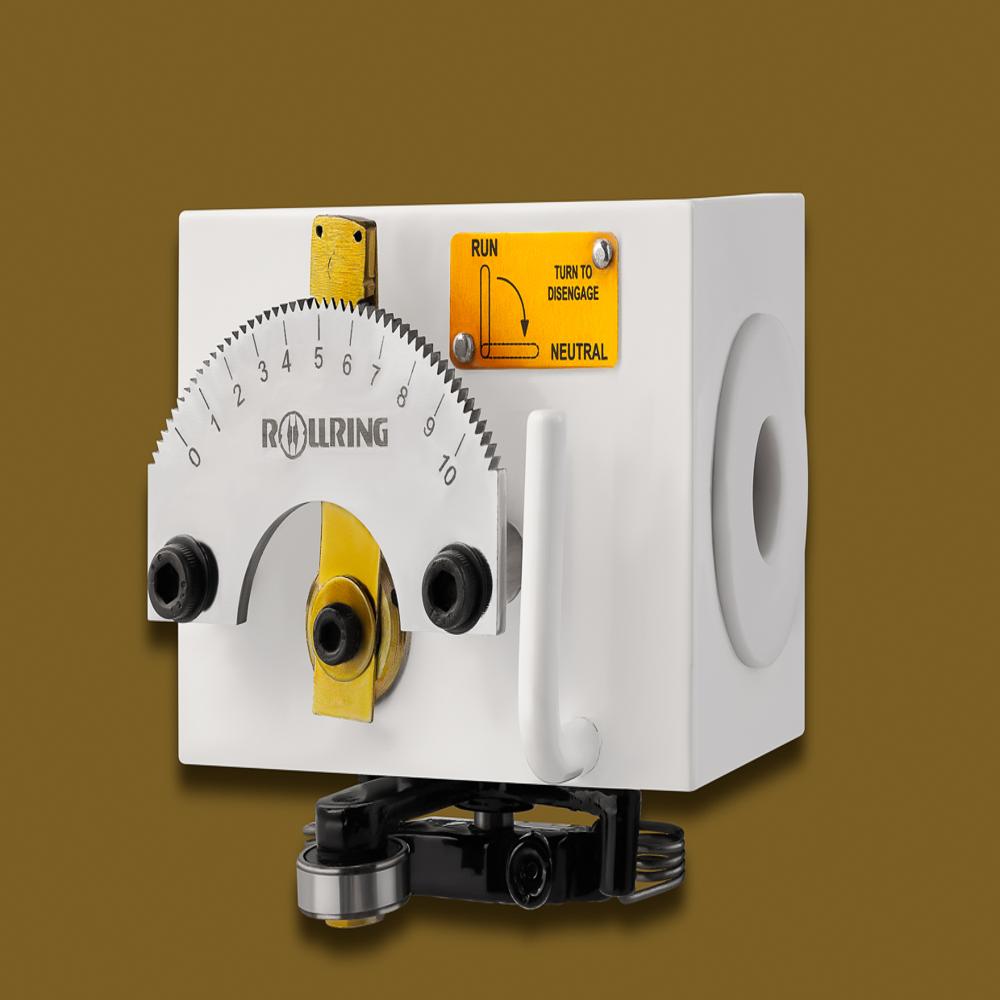

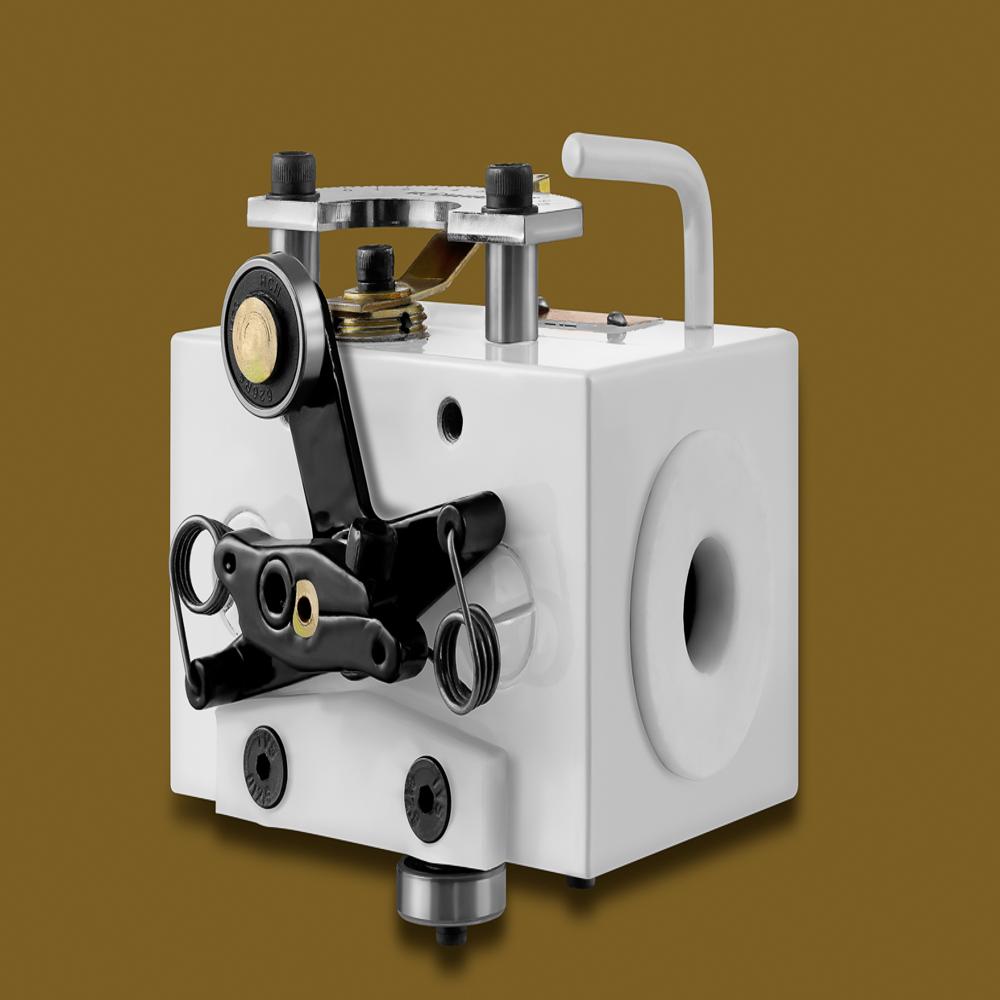

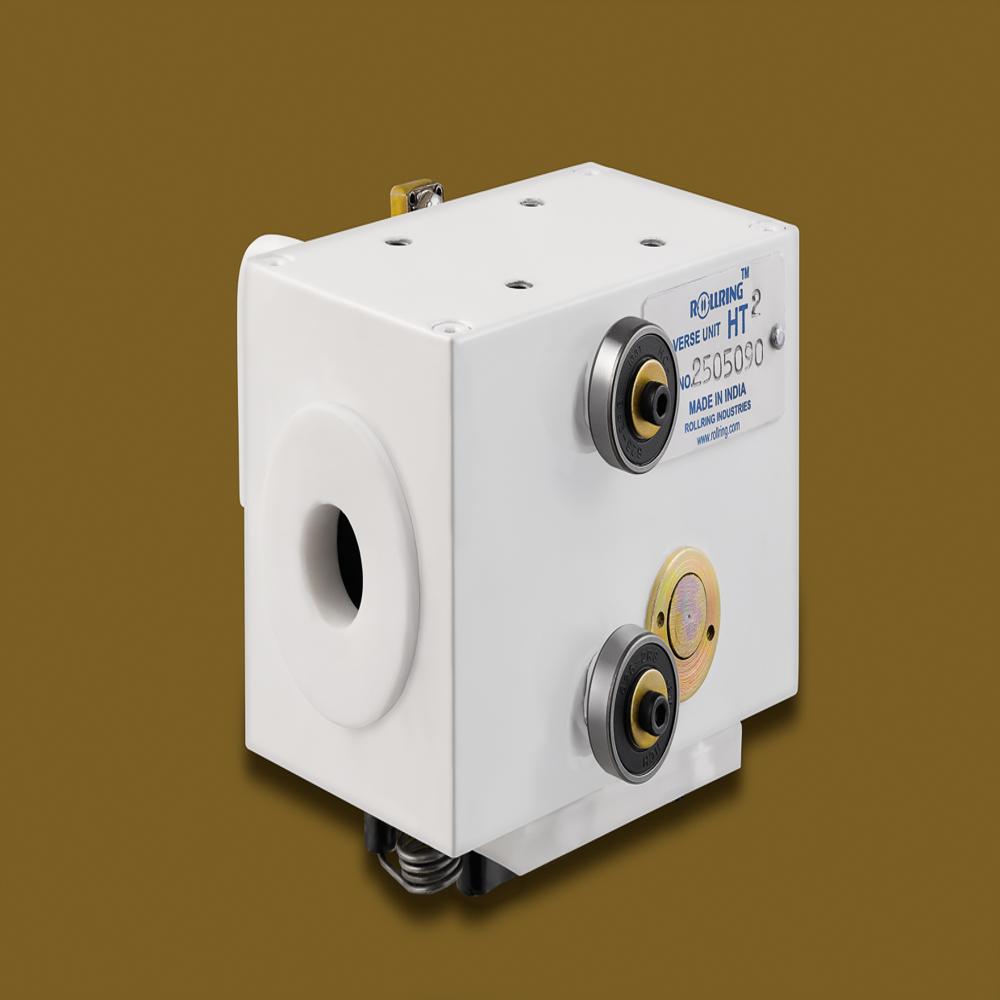

HT2 - 15mm Dia Shaft Traverse Unit

Price 10920.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

HT2 - 15mm Dia Shaft Traverse Unit Specification

Lubricating System
Sealed Bearing, Maintenance-Free

Drive
Shaft Driven

Noise Level
Low

Model No
HT2 - 15mm Dia Shaft Traverse Unit

Operating Temperature
Ambient (-10C to 50C approx.)

Production Capacity
Suitable for Multi-shift/Textile Applications

Accuracy
High Traverse Accuracy

Control System
Manual Control Lever

Connectivity Options
Mechanical Connection to Shafts

Machine Type
Traverse Movement Assembly

Features
Durable, Precision Scale, Easy Setting, Neutral Option, Robust Construction

Frame Type
Rigid Box Type

Product Type
Traverse Unit

Technology
Mechanical Traverse Mechanism

Power Source
Manual / Mechanical

Operating Type
Manual Adjustment

Power
No External Power Required

Surface Treatment
Powder Coated / Anodized

Dimension (L*W*H)
Compact, Exact Values Not Provided

Weight (kg)
Approx. 4-6 kg

Color
White with Yellow Accents

Usage & Applications
Used in Winding, Rewinding, and Textile Machines for Precise Traverse Movement

Packaging
Individual Box Pack

Maintenance
Minimal, Periodic Inspection

Lever Function
Shift for Traverse/Neutral

Typical Industries
Textile, Packaging, Winding, Converting

Replacement Parts Availability
Available as per Manufacturer

Working Speed
Suitable for Standard Winding/Rewinding Operations

Mounting Type
Direct Mount on Traverse Shaft

Shaft Diameter Compatibility
15mm

Indicator Type
Engraved, Precision Markings

Traverse Adjustment Range
0-180 Degrees (via engraved scale)

Material
High-Grade Alloy, Surface Treated

Installation
Quick Mounting, User-Friendly

Safety Features
Tamper Resistant Design

HT2 - 15mm Dia Shaft Traverse Unit Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HT2 - 15mm Dia Shaft Traverse Unit

Traverse unit model HT2 for 15 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 15 mm

Number of Rolling Rings :3

Side Thrust Capacity: 10 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 19 meters per minute

Maximum Pitch: 9.5 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 2000 RPM

Drive Torque: 0.3 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.
