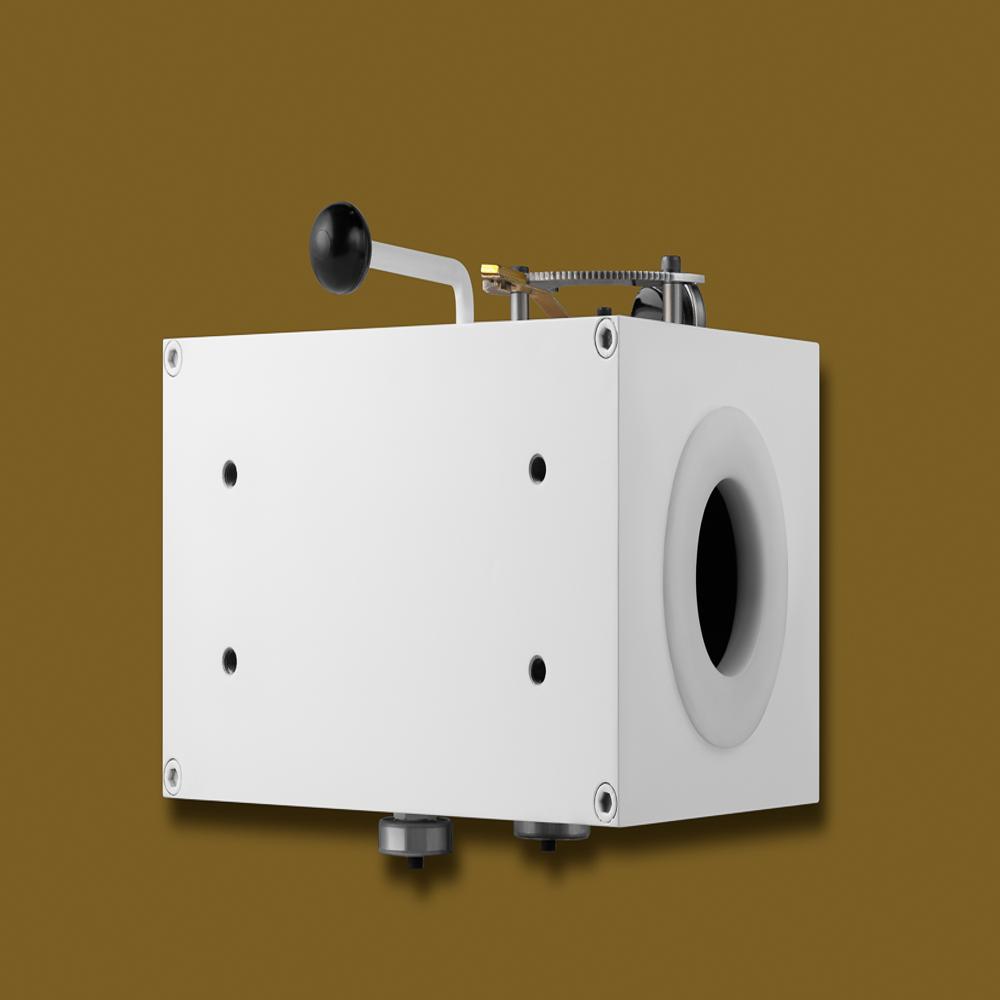

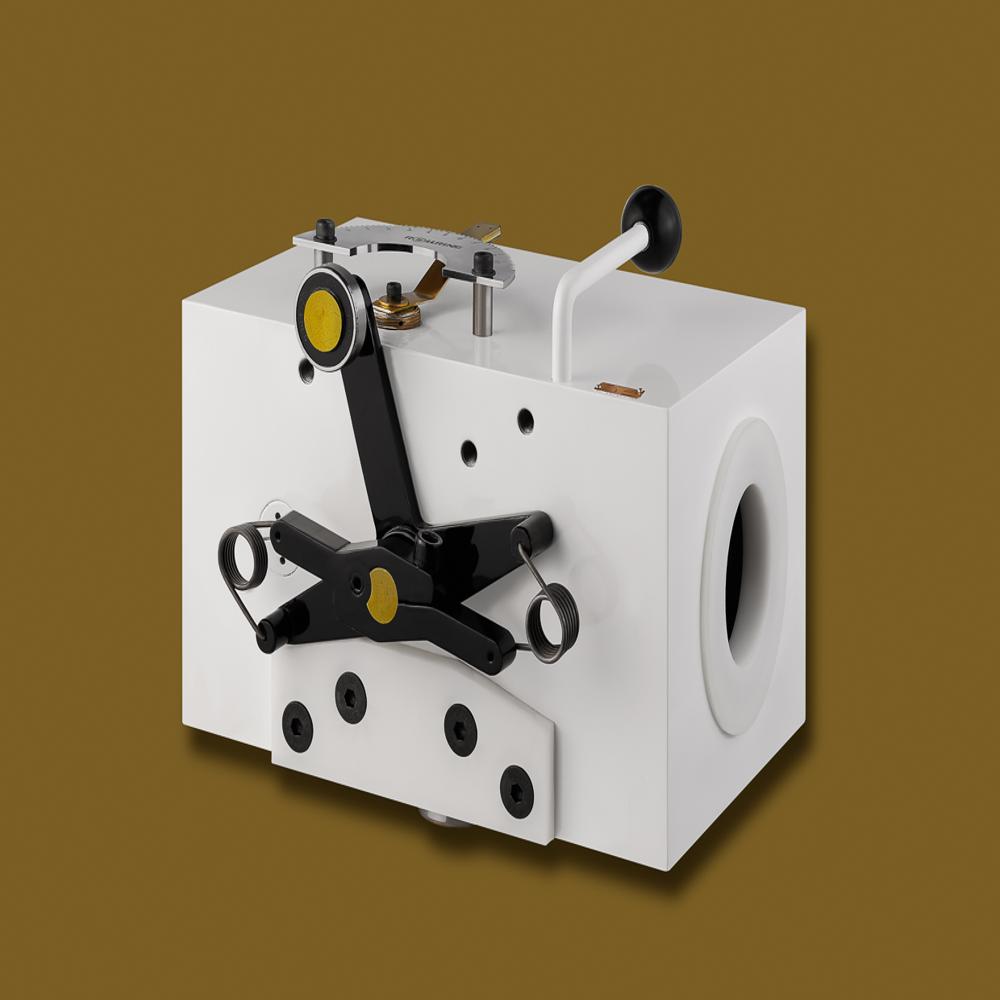

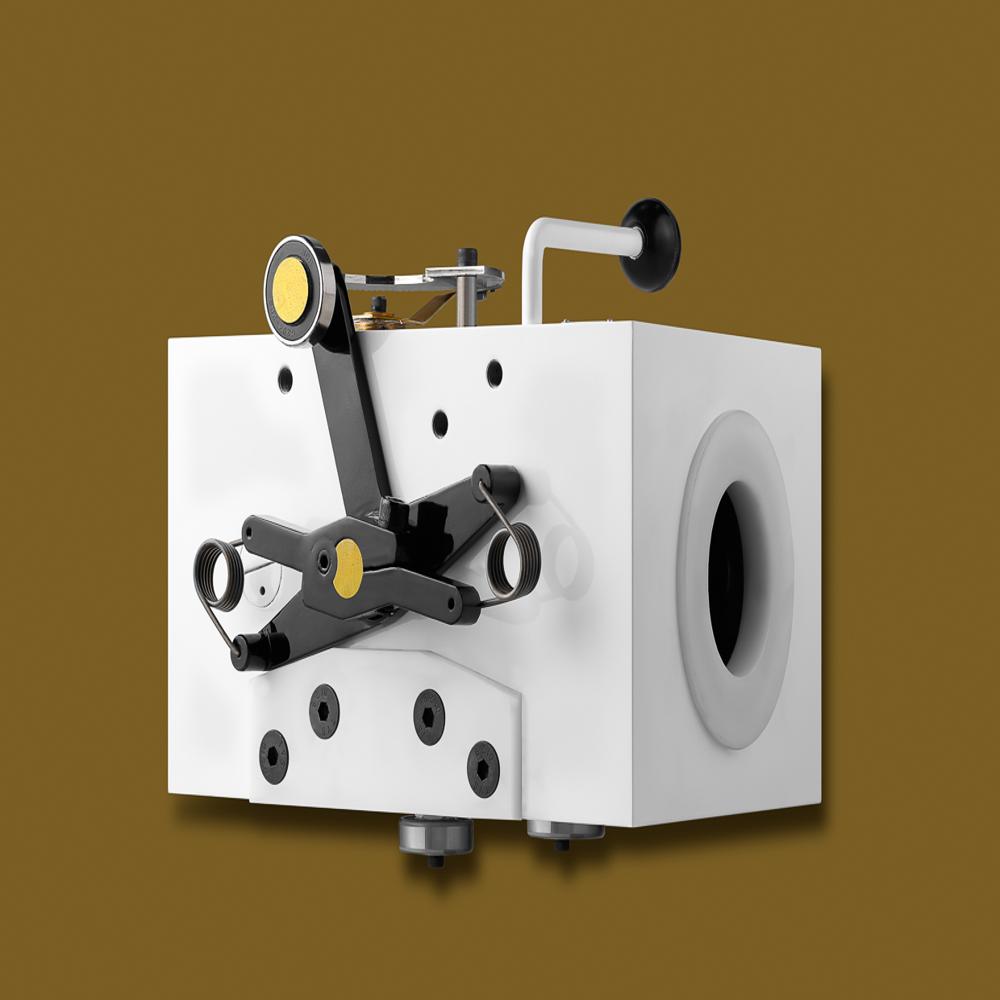

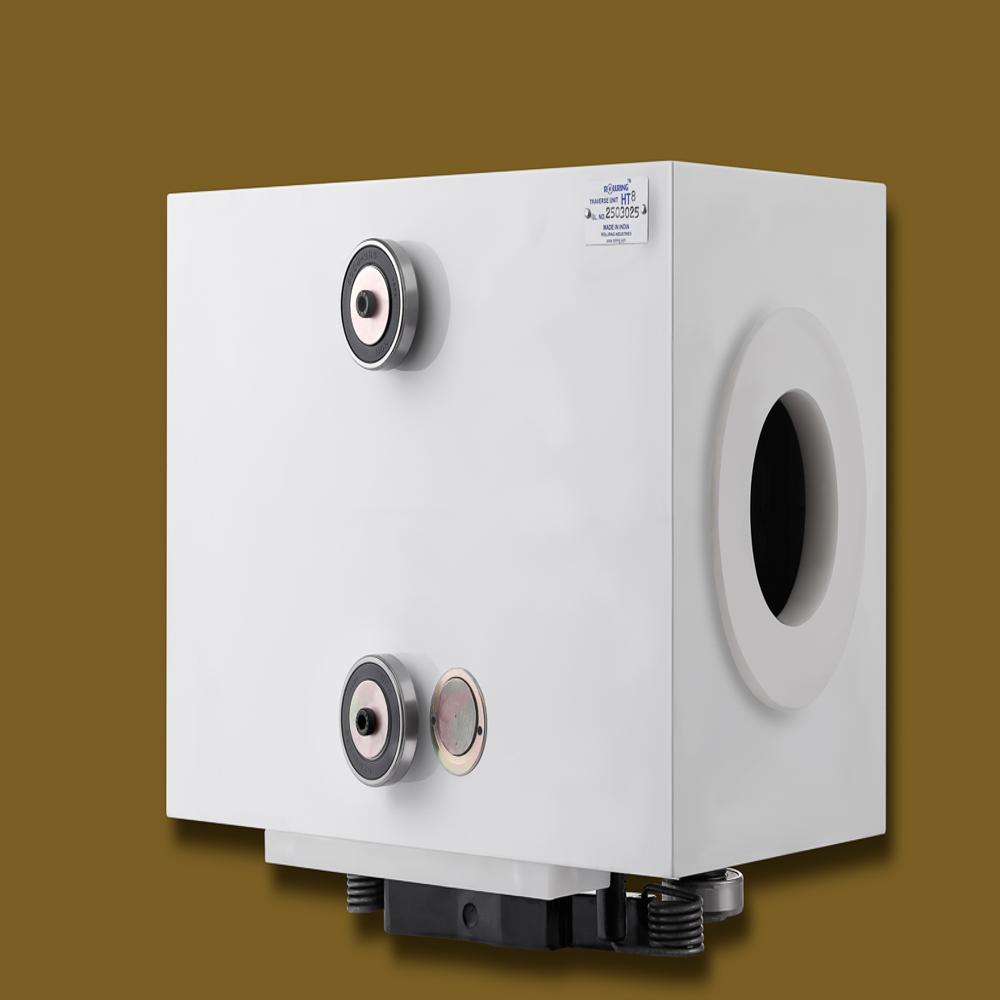

HT 8 - 80mm Dia Shaft Traverse Unit

Name: HT 8 - 80mm Dia Shaft Traverse Unit
Brand: Rollring Industries
Price: 51800.0 INR
Availability: InStock

Price 51800.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

HT 8 - 80mm Dia Shaft Traverse Unit Specification

Operating Temperature
0C - 60C

Machine Type
Traverse Unit

Model No
HT 8

Lubricating System
Self-lubricating Bearings

Features
Compact design, maintenance-free, robust build, high precision movement

Frame Type
Heavy-duty Rigid Frame

Accuracy
0.05 mm positional accuracy

Noise Level
Low, <60 dB

Control System
Mechanical/Optional Electronic Feedback

Drive
Positive Direct Drive

Connectivity Options
Mounting holes, shaft clamping

Production Capacity
Manual/Automatic as required

Product Type
Shaft Traverse Unit

Technology
Industrial Precision Mechanism

Power Source
Mechanical

Operating Type
Manual / Automated (depending on application)

Surface Treatment
Anodized / Coated Metal

Dimension (L*W*H)
Custom / On Demand; Standard: supports 80mm Shaft Diameter

Weight (kg)
Approx. 2.5-5 kg

Color
Metallic (Silver/Black/Yellow Accents)

Warranty
2 YEAR

Usage & Applications
Textile, Yarn Winding, Reel-to-Reel Traverse, Web Guiding

Life Span
Over 5 million operation cycles

Finishing
Corrosion Resistant/Polished

Working Speed
Up to 700 cycles/min (varies as per integration)

Order Customization
Available on Request

Accessories Included
Mounting Fittings, User Manual

Replacement Compatibility
Suited for Most Indian/International Winding Units

Shaft Compatibility
For 80mm Diameter Shafts

End Mounting Type
Universal Fit

Traverse Range
10-300mm (custom as per order)

Mounting Provision
Available on Both or Single Side

Service Support
On-site and Remote Support Provided

Roller Material
High-Grade Alloy Steel with Precision Ball Bearings

Installation
Easy, Plug-and-Play

Maintenance
Zero-to-Minimal Required

Frictional Resistance
Minimal via Precision Bearings

Suitable Material Handling
Textile Yarn, Film, Paper, Foil etc.

HT 8 - 80mm Dia Shaft Traverse Unit Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HT 8 - 80mm Dia Shaft Traverse Unit

Traverse unit model HT8 for 80 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 80mm

Number of Rolling Rings :3

Side Thrust Capacity: 150 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 19.8 meters per minute

Maximum Pitch: 64 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 300 RPM

Drive Torque: 32 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.

Why Choose Our Traverse Units?

Built for high-speed, high-precision industrial environments

Easy setup and low maintenance

Proven performance in continuous production

Adaptable to various shaft diameters and speeds

Superior Precision and Reliability

Engineered using high-grade alloy steel and precision ball bearings, the HT 8 delivers high positional accuracy and smooth, reliable movement for demanding applications. Its self-lubricating bearings minimize maintenance and ensure a long operational lifespan, even at high speeds and continuous use.

Versatile Integration and Easy Installation

With universal end mounting and compatibility for both single or dual configurations, this traverse unit adapts effortlessly to various winding and material handling setups. Plug-and-play installation assists in rapid deployment, enabling minimal downtime when outfitting new or existing equipment.

Robust Design Tailored for Industry Needs

Designed for textile, yarn winding, web guiding, and similar industries, the HT 8 features a heavy-duty frame and corrosion-resistant polish. It withstands intensive use while supporting customizable traverse ranges, operational modes, and sizes to precisely meet individual client requirements.

FAQ's of HT 8 - 80mm Dia Shaft Traverse Unit:

Q: How is the HT 8 - 80mm Dia Shaft Traverse Unit installed?

A: The HT 8 is engineered for easy, plug-and-play installation with universal end mounting, allowing mounting on either or both sides as required. It comes with all necessary fittings and a user manual for straightforward assembly and integration into your existing setups.

Q: What materials and shaft sizes is this traverse unit compatible with?

A: This unit is specifically designed for 80mm diameter shafts and supports handling of various materials, including textile yarn, film, paper, and foil. Its versatile design makes it compatible with most Indian and international winding and reel-to-reel units.

Q: When should I opt for manual versus automated operation?

A: You can choose between manual or automated (mechanical) operating modes depending on your application's demand for control or speed. Automated functionality can boost efficiency in high-volume industrial settings, while manual operation suits specialized or low-volume handling.

Q: Where can the HT 8 traverse unit be deployed?

A: Ideal for a range of environments, this traverse unit fits textile plants, winding operations, web guiding systems, and any production line needing precise, repeatable shaft traversal. Its robust, corrosion-resistant build allows installation both in standard and demanding industrial setups.

Q: What is the advantage of self-lubricating bearings in this unit?

A: Self-lubricating precision bearings minimize friction and wear, greatly reducing maintenance requirements. This feature ensures smooth, reliable operation with a life span exceeding 5 million cycles, making the system virtually maintenance-free with minimal downtime.

Q: How does the HT 8 benefit my production process?

A: With its high working speed (up to 700 cycles/min), precise positioning (0.05 mm accuracy), and robust frame, the HT 8 enhances productivity and consistency in material handling. Its low noise, reliability, and ease of service further contribute to improved operational efficiency and reduced long-term costs.
