Price 18500.00 INR/ Unit

MOQ : 1 Unit

4RR30 - 30mm Dia Shaft Traverse Unit Specification

  • Connectivity Options
  • Mechanical Coupling
  • Machine Type
  • Precision Traverse Unit
  • Production Capacity
  • Depends on usage and system requirements
  • Control System
  • Cam and Lever Mechanism
  • Noise Level
  • Low
  • Lubricating System
  • Pre-lubricated, Maintenance Free
  • Drive
  • Mechanical / Manual
  • Accuracy
  • High Traverse Accuracy 0.1mm
  • Operating Temperature
  • 0C to 60C
  • Model No
  • HT15-4RR30
  • Features
  • Compact Design, Smooth Operation, High Durability
  • Frame Type
  • Box Frame Construction
  • Product Type
  • Shaft Traverse Unit
  • Technology
  • Precision Mechanical Traverse
  • Power Source
  • Manual / Mechanical
  • Surface Treatment
  • Anodized / Powder Coated
  • Dimension (L*W*H)
  • Approx. 120mm x 80mm x 80mm
  • Weight (kg)
  • Approx. 4.5 kg
  • Color
  • White with Black Accents
  • Usage & Applications
  • Web guiding, Winding, Packaging, Printing machinery
  • Working Speed
  • Up to 300 cycles per minute (depending on system)
  • Interchangeability
  • Compatible with Most Standard Traverse Systems
  • Roller Type
  • Precision Ball Bearing Rollers
  • Lubrication Points
  • Sealed Bearings - No External Points
  • Material
  • Aluminium Alloy Body with Hardened Steel Rollers
  • Shaft Diameter
  • 30mm
  • Application Compatibility
  • Suitable for Web Alignment, Rewinding, Unwinding Units
  • Maintenance Requirement
  • Low, Periodic Cleaning Recommended
  • Mounting Option
  • Side Mount / Base Mount
  • Backlash
  • Minimal, Suited for High Precision
  • Max Load Capacity
  • Up to 30 kg


4RR30 - 30mm Dia Shaft Traverse Unit Trade Information

  • Minimum Order Quantity
  • 1 Unit
  • Payment Terms
  • Cash in Advance (CID)
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 7 Days
  • Main Domestic Market
  • All India


About 4RR30 - 30mm Dia Shaft Traverse Unit

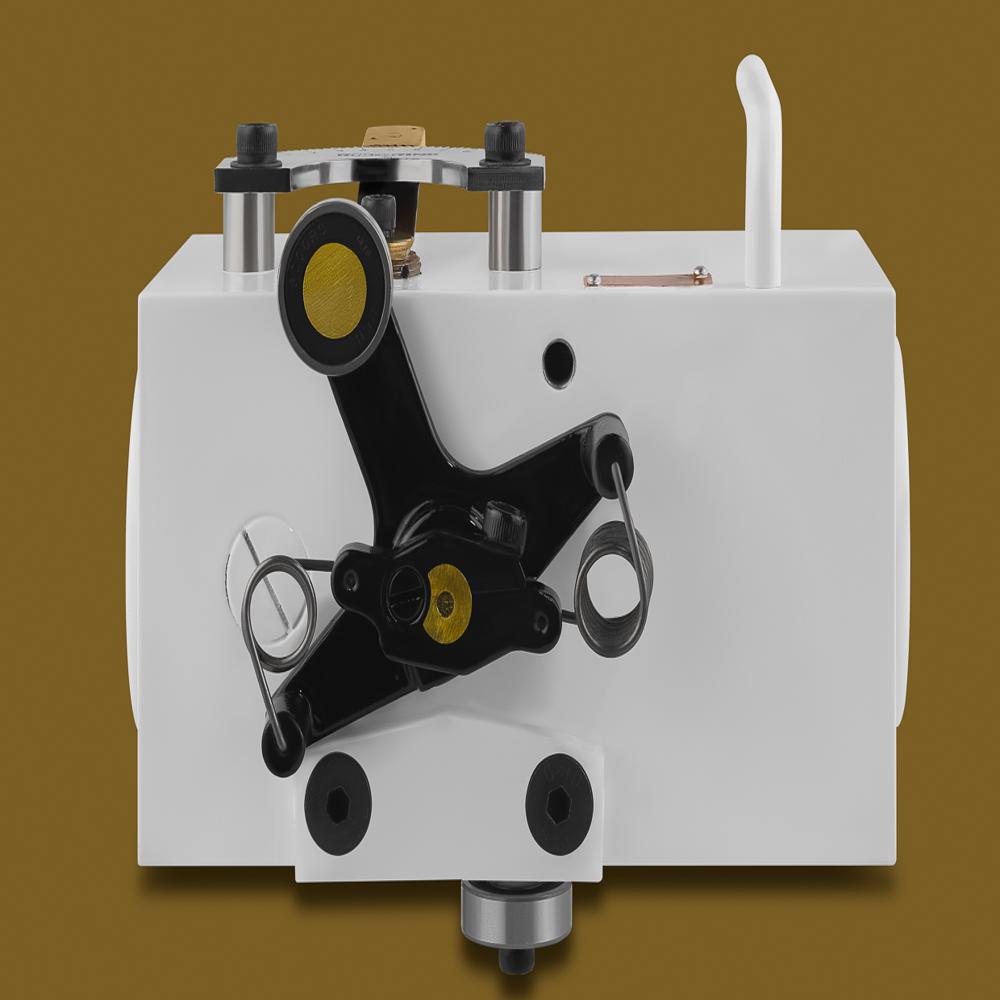

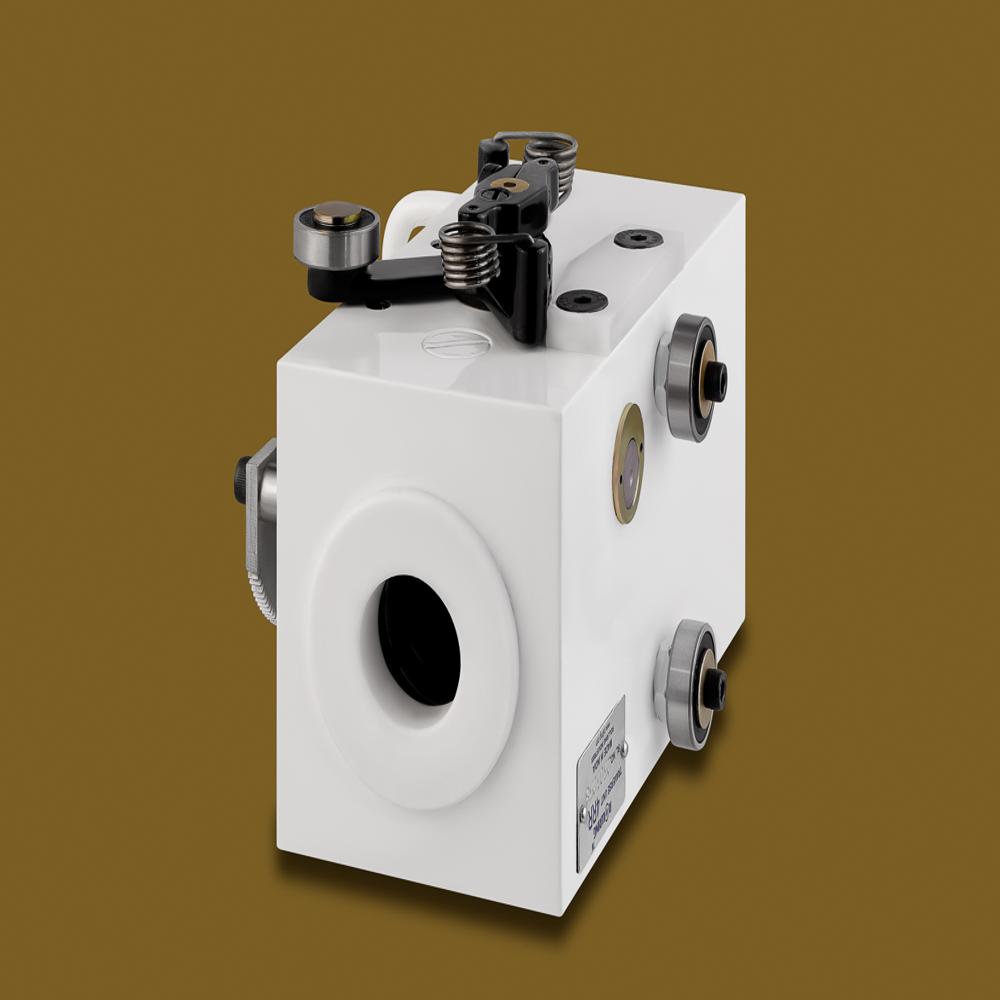

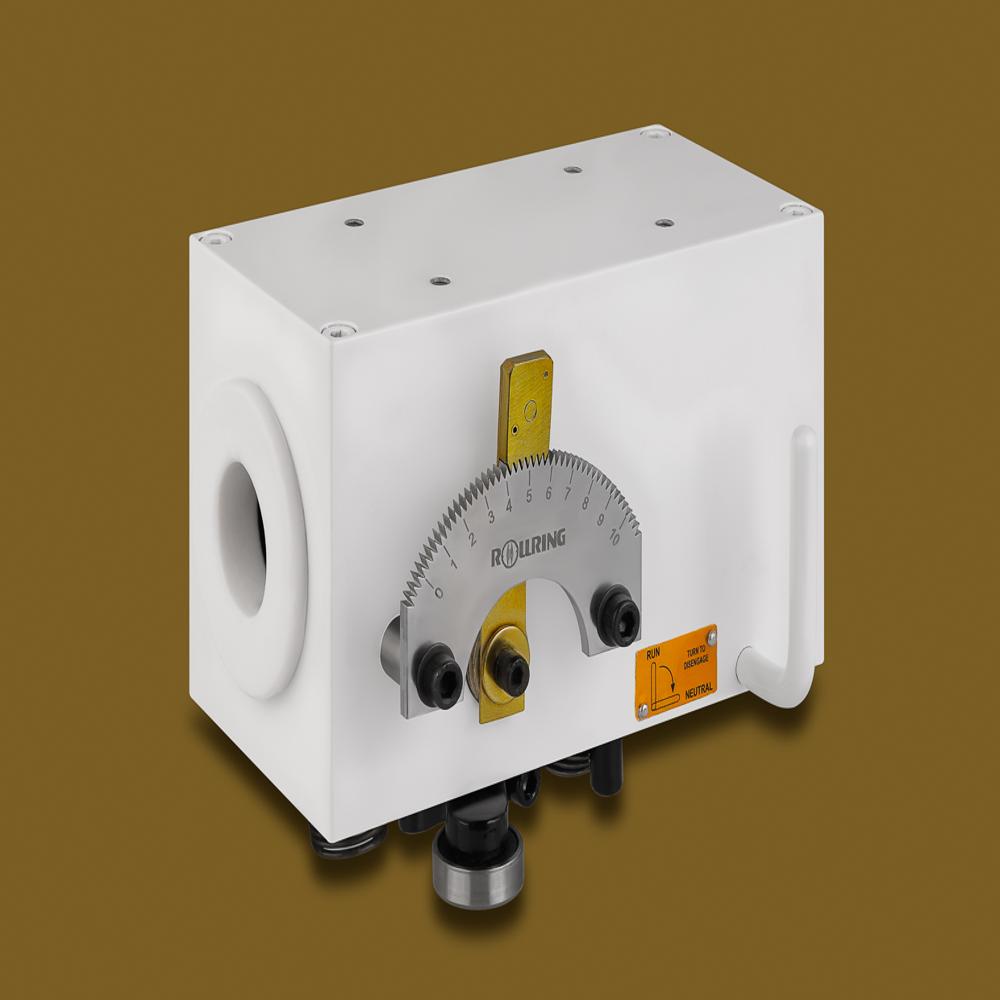

Traverse unit model 4RR30 for 30 mm diameter shaft

Rollring Traverse Units  Precision Linear Motion Solutions

Technical Specifications

        Shaft Diameter: 30mm

        Number of Rolling Rings :4

        Side Thrust Capacity: 42 kg
Maximum safe  force before the traverse unit slips on the shaft.

        Maximum Linear Speed: 24 meters per minute

        Maximum Pitch: 24 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

        Maximum Shaft Speed: 1000 RPM

        Drive Torque: 2.5 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

        Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

        Finely Adjustable Linear Speed using a quick lever adjustment.

        Variable Stroke Lengths to match different production needs.

        Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

        Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

        Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

        Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.

Why Choose Our Traverse Units?

        Built for high-speed, high-precision industrial environments

        Easy setup and low maintenance

        Proven performance in continuous production

        Adaptable to various shaft diameters and speeds
