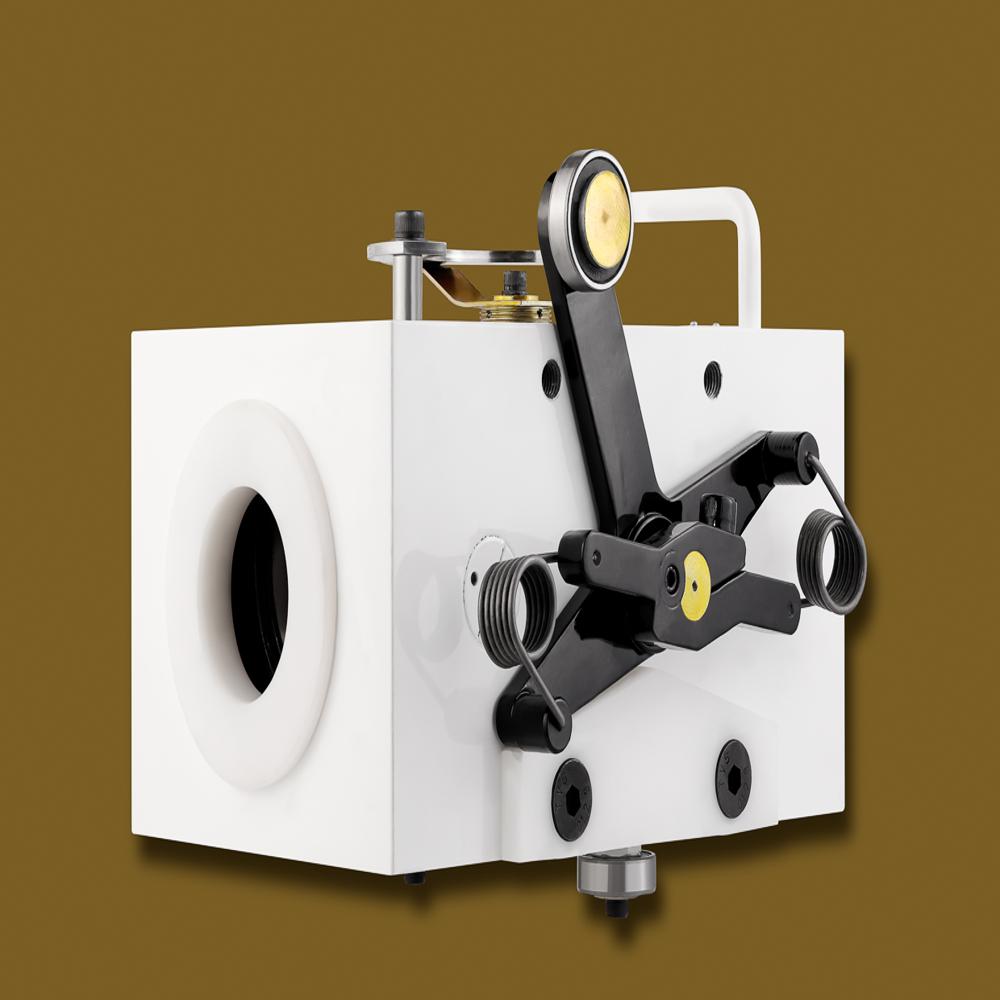

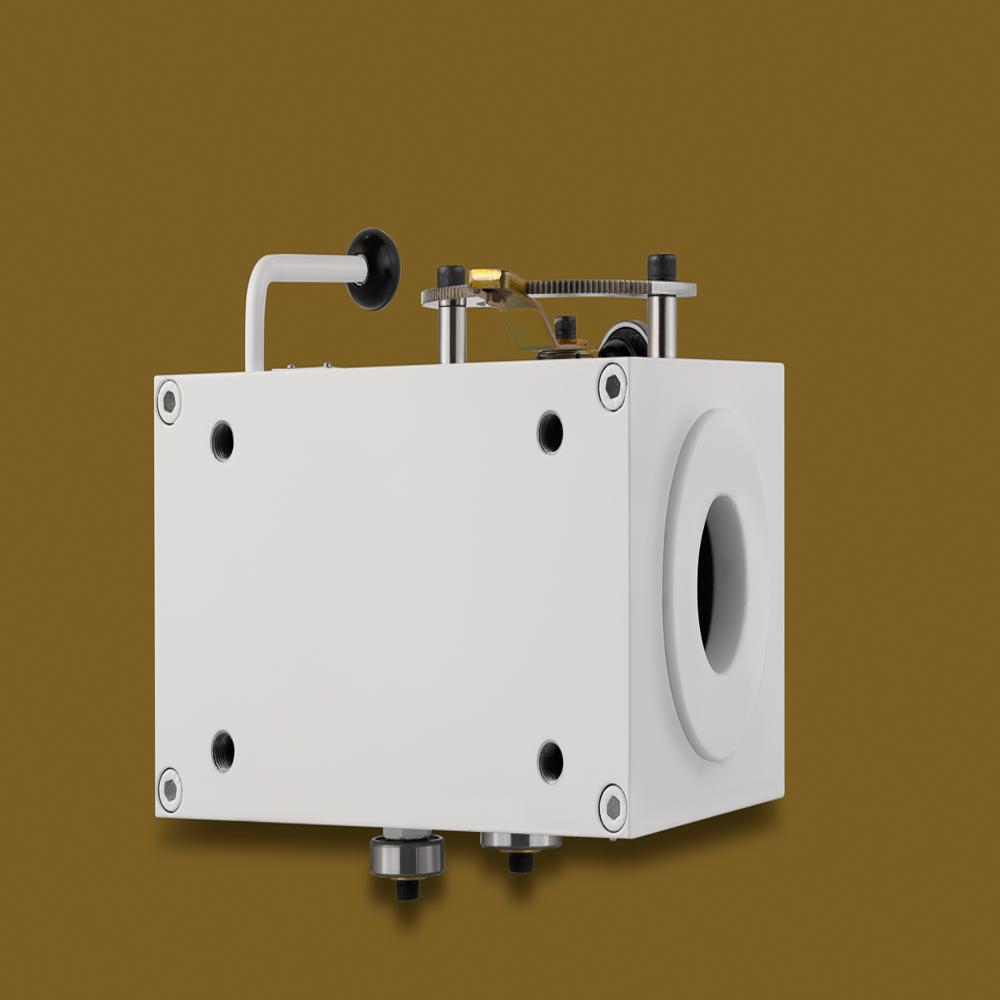

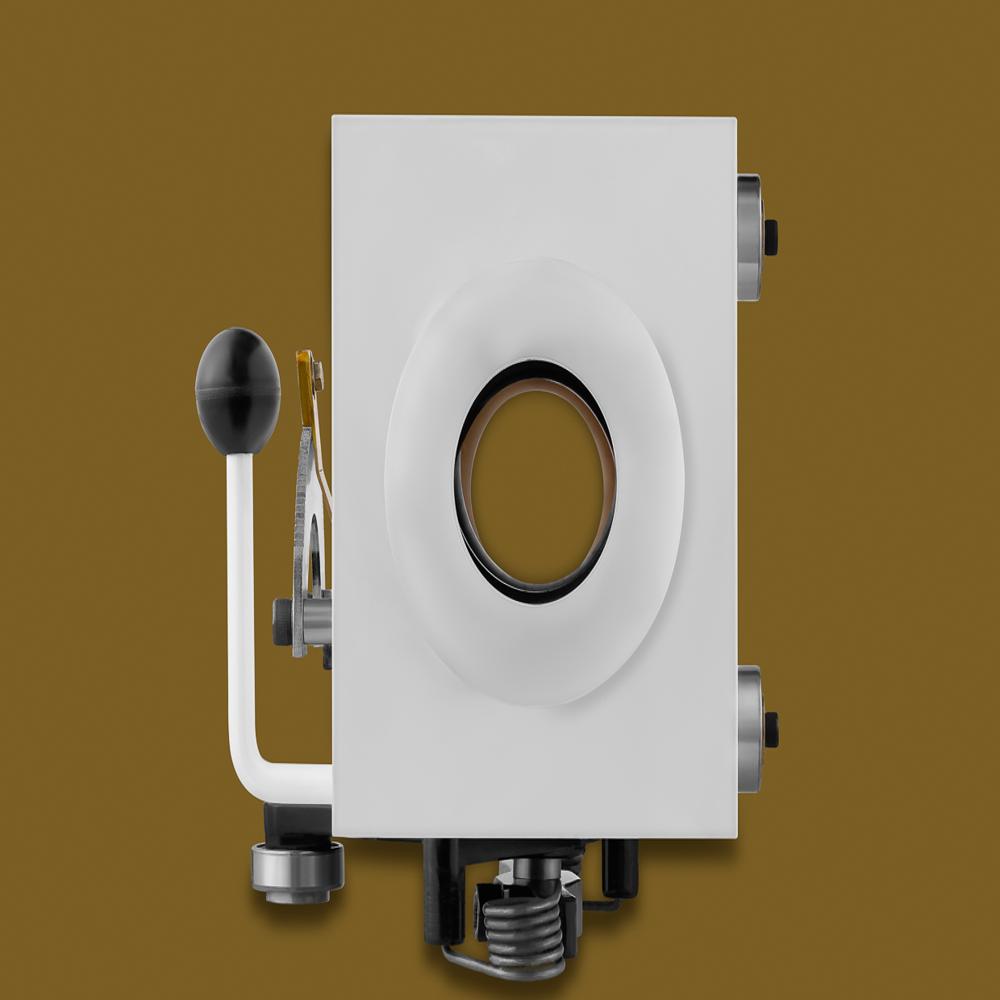

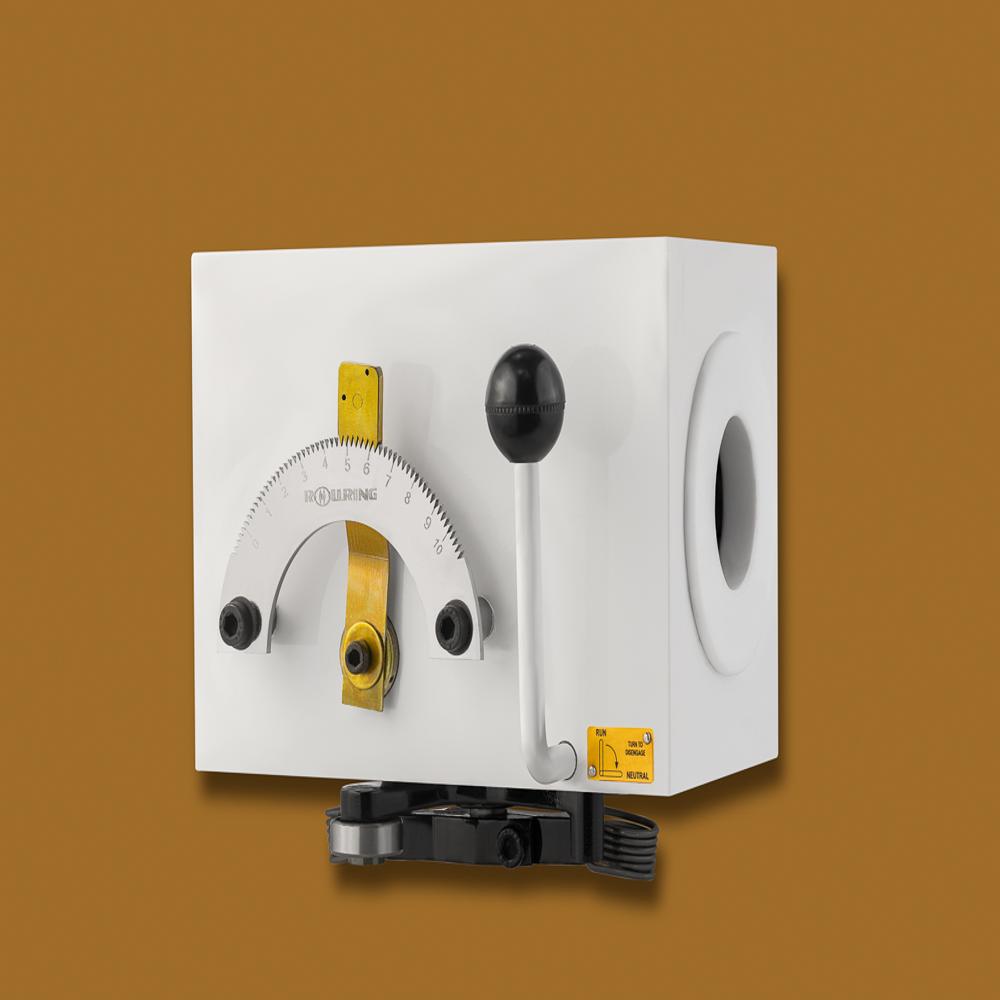

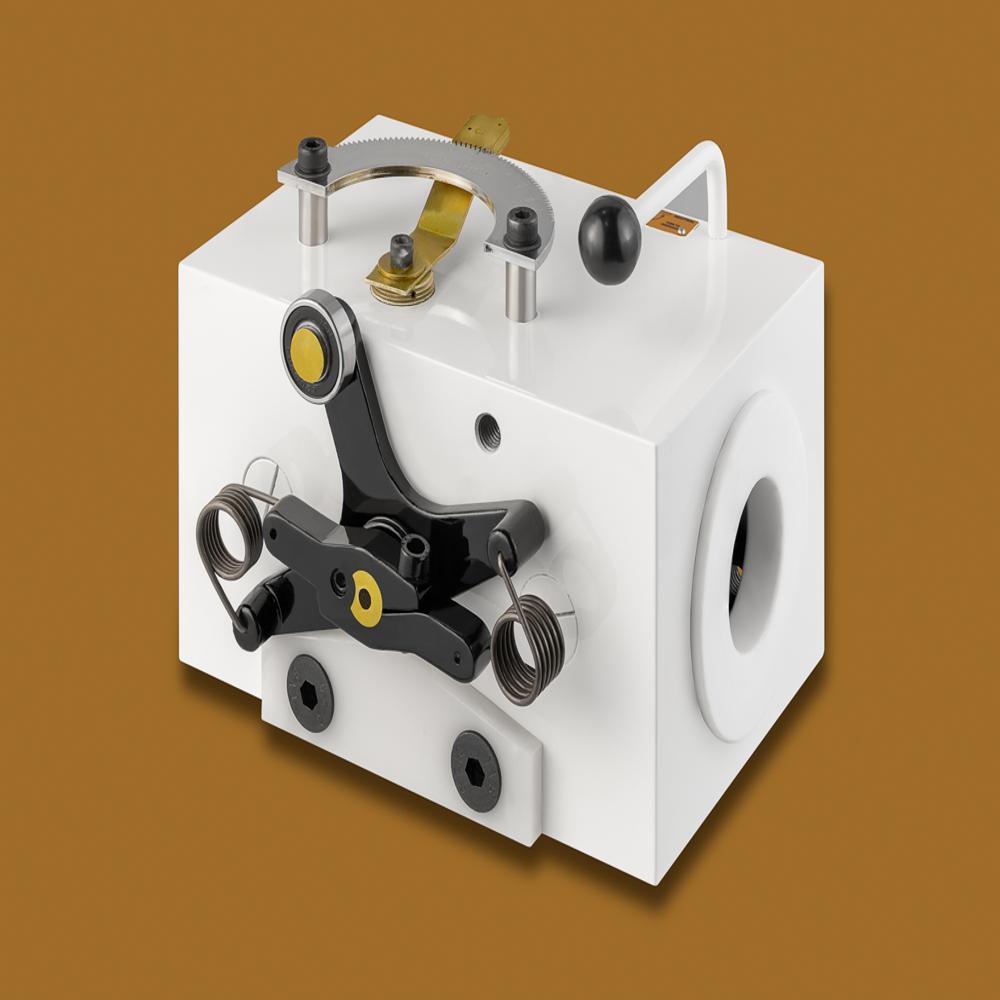

HT6 - 60mm Dia Shaft Traverse Unit

Price 36460.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

HT6 - 60mm Dia Shaft Traverse Unit Specification

Frame Type
Rigid Design

Lubricating System
Manual Lubrication

Operating Temperature
5C to 60C

Motor Power
Optional Up to 50W

Features
Smooth Traverse, Anti-corrosive Body, Angle Adjustment Protractor

Model No
HT19 - 4RR25

Connectivity Options
Mechanical or with Encoder Feedback (Optional)

Control System
Manual / Optional Electro-mechanical Controller

Drive
Manual/Electromechanical

Accuracy
0.05 mm

Production Capacity
50 Units/Month

Machine Type
Traverse & Positioning Unit

Noise Level
Less than 45 dB

Product Type
Shaft Traverse Unit

Technology
Precision Mechanical Traverse

Power Source
Manual / Electric (Optional)

Operating Type
Manual/Electromechanical

Surface Treatment
Powder Coated / Anodized

Dimension (L*W*H)
Customizable, Standard: 130 x 80 x 75 mm

Weight (kg)
Approx. 2.1 kg

Color
White-Gold/Black Dial Elements

Usage & Applications
Used for precise linear motion and positioning in industrial automation and machine tools

Traverse Range
Up to 300 mm (customizable)

Protection
Dust Cover Included

Bearing Type
Ball Slide Bearings

Shaft Diameter
25 mm

Body Material
High Grade Aluminum & Tool Steel

Finish
Fine Machined and Powder Coated

Angular Adjustment
0-90 with Precision Protractor

Mounting Type
Base Mount with Slot Holes

Repeatability
0.01 mm

Working Speed
Up to 300 mm/s (Optional Motor)

HT6 - 60mm Dia Shaft Traverse Unit Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About HT6 - 60mm Dia Shaft Traverse Unit

Traverse unit model HT6 for 60 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 60mm

Number of Rolling Rings :3

Side Thrust Capacity: 100 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 16.8 meters per minute

Maximum Pitch: 48 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 350 RPM

Drive Torque: 10 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.
