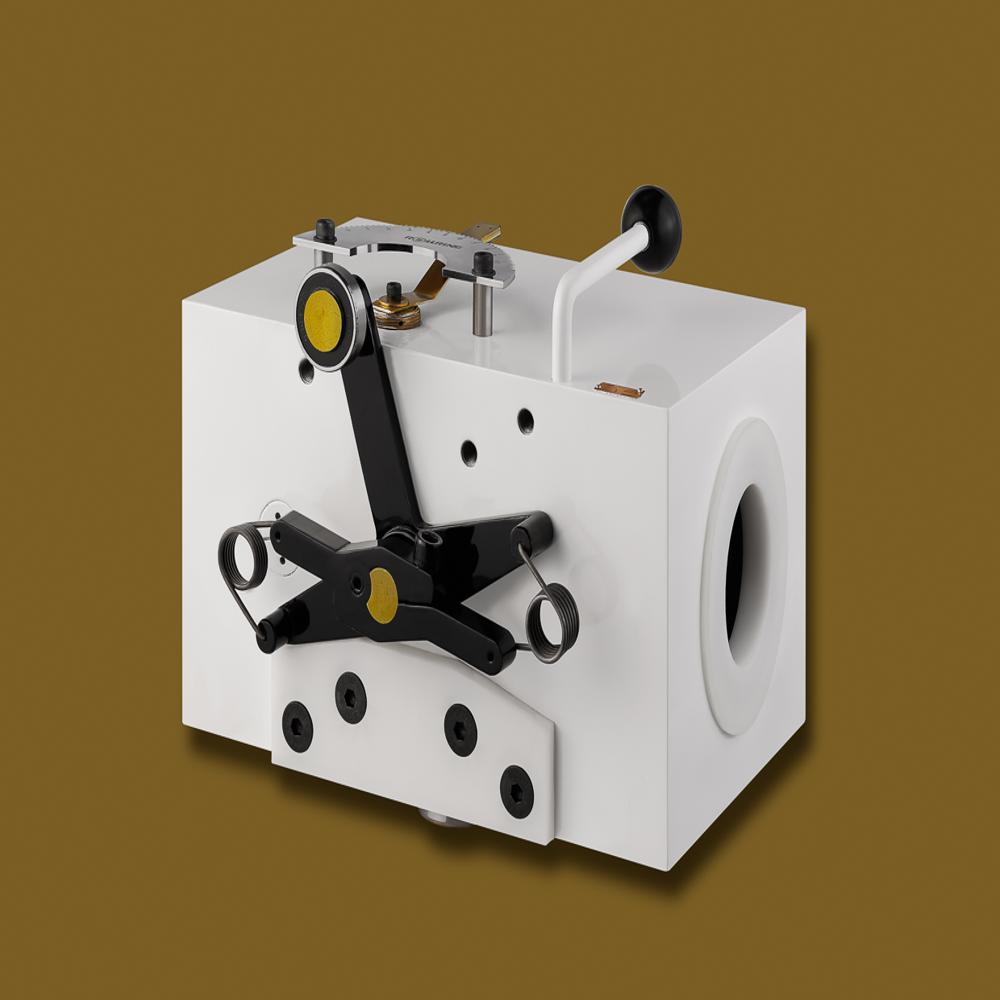

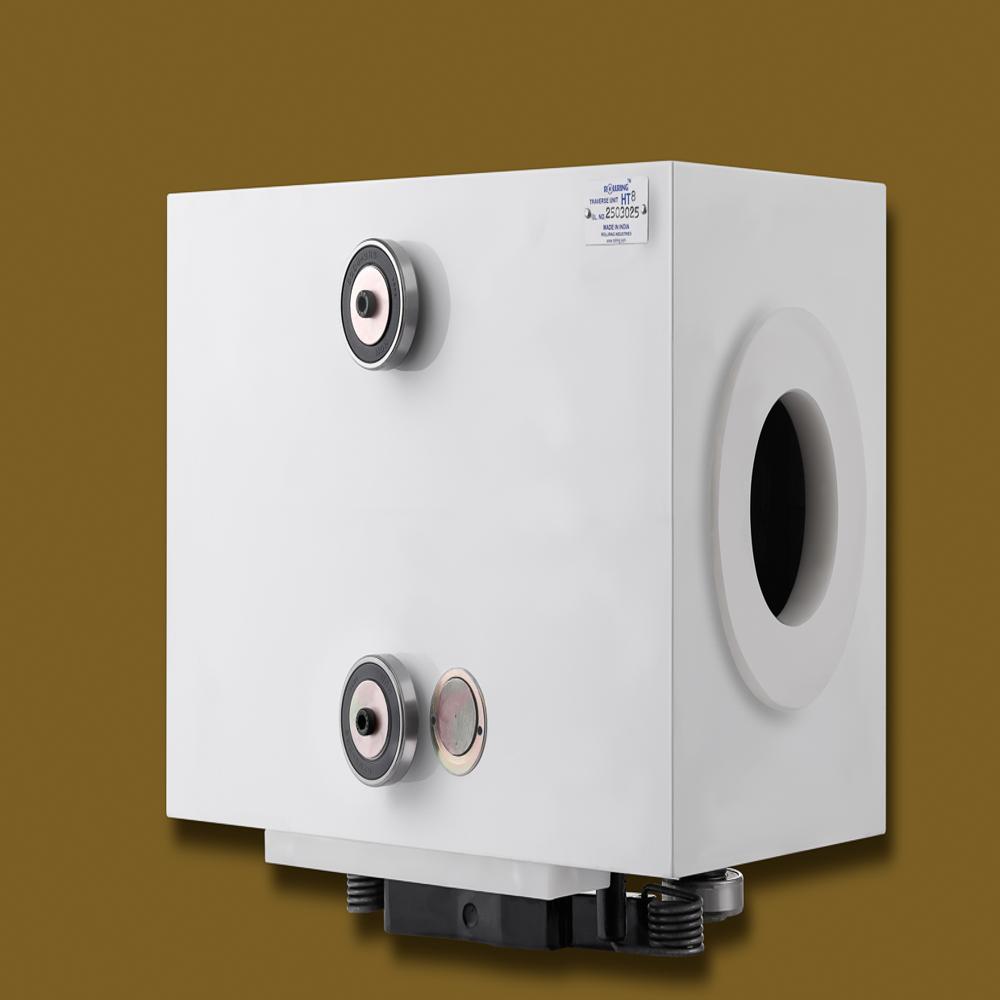

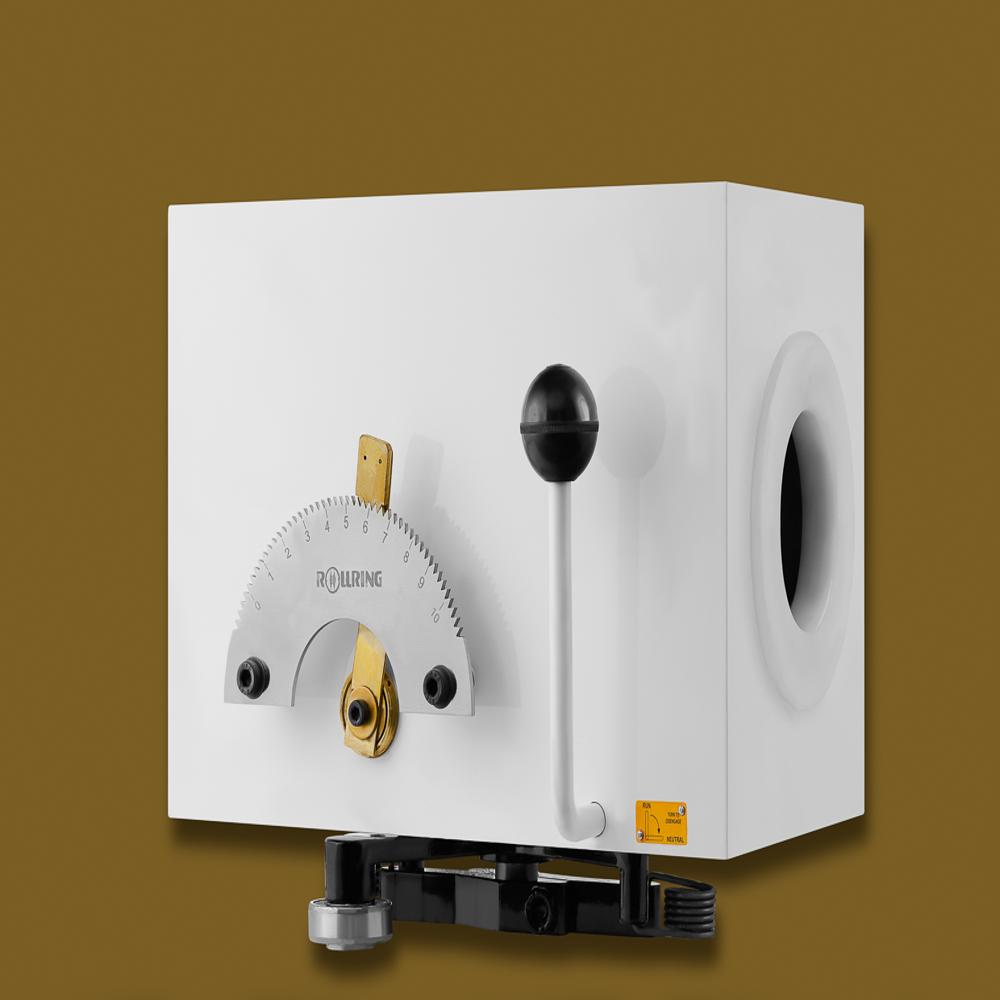

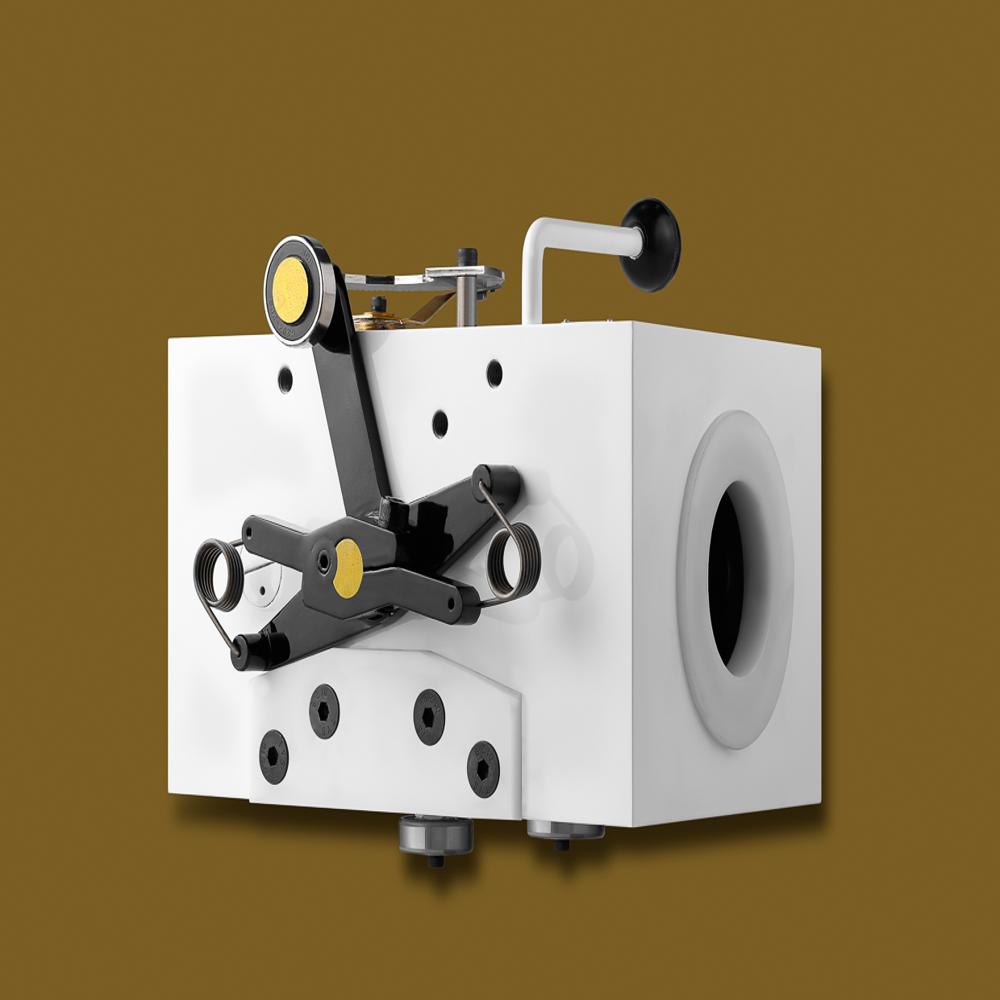

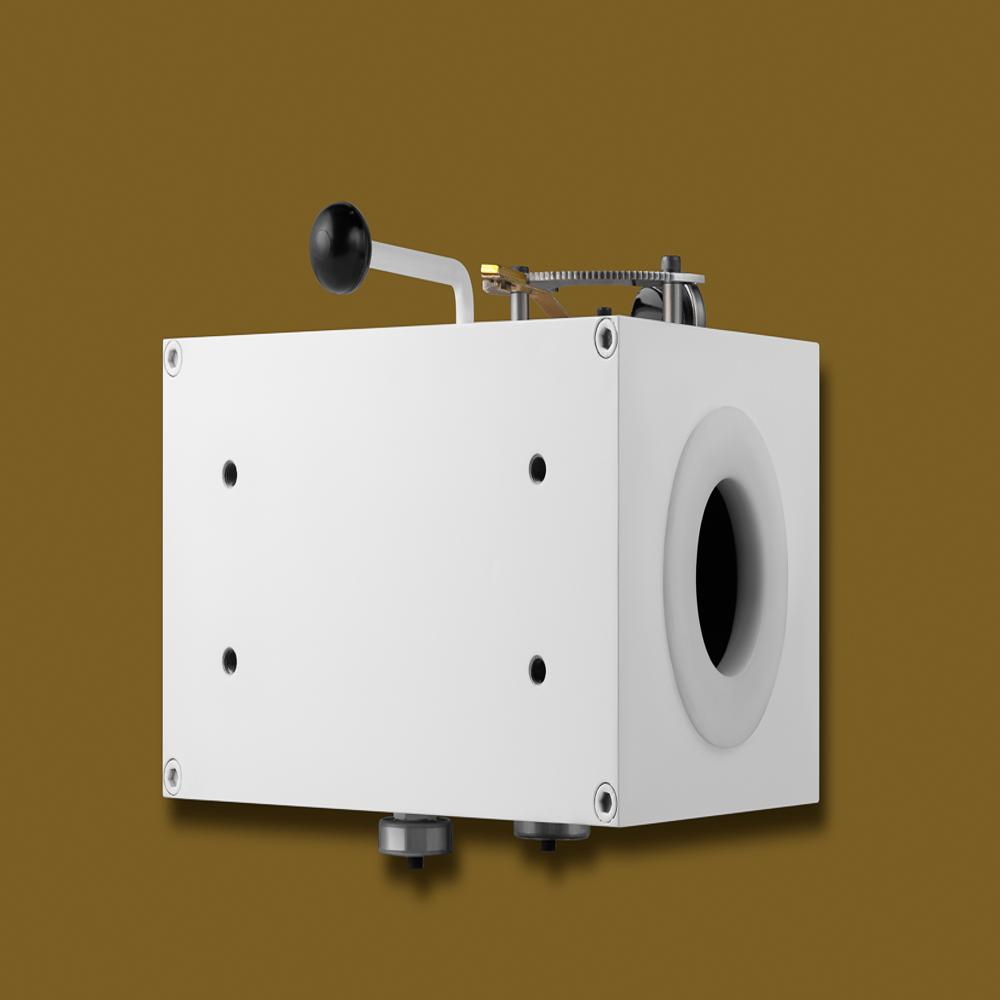

4RR80- 80 mm dia shaft Traverse unit

Price 62000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

4RR80- 80 mm dia shaft Traverse unit Specification

Features
Robust design, corrosion protection, smooth traverse, low maintenance, quick installation

Machine Type
Line Shaft Traverse Block

Model No
4RR80

Connectivity Options
Mounting bolts for direct machine integration

Production Capacity
Consistent operation for 24x7 industrial use

Drive
Mechanical Linkage Drive

Lubricating System
Manual grease points at linkage pivots

Frame Type
Box Frame

Operating Temperature
5C to 50C

Noise Level
< 60 dB (Typical Mechanical Operation)

Control System
Manual lever and linkage mechanism

Accuracy
Traverse accuracy within 1 mm

Product Type
Traverse Unit

Technology
Mechanical Traverse Mechanism

Power Source
Manual/Mechanical

Operating Type
Manual

Power
Not applicable (mechanical operation)

Pressure
Manual/Mechanical (no pressure input required for shaft movement)

Surface Treatment
Powder Coated/Anodized Components

Dimension (L*W*H)
Approx. 250 mm x 200 mm x 180 mm

Weight (kg)
~8-12 kg (Estimated)

Color
White & Black (with yellow detailing)

Usage & Applications
Used for precise left-right traverse of 80 mm dia shaft in winding/unwinding/packaging/printing machinery

Corrosion Resistance
Powder coated/frame painted for rust prevention

Working Speed
Suitable for line speeds up to 300 m/min (depends on application)

Max Shaft Load
Up to 50 kg

Traverse Stroke
Adjustable traverse stroke (typically 10 mm to 200 mm, application dependent)

Application Compatibility
Compatible with slitter rewinders, winders, unwinders, packaging, laminating, textile and printing machines

Spring Mechanism
Hardened steel dual spring

Maintenance
Low (Periodic lubrication recommended)

Shaft Diameter Supported
80 mm

Customization
Custom models available for other shaft diameters or traverse strokes

Replaceable Parts
Springs and guide bushings

Mounting
Directly mountable on standard industrial frames

Roller/Guide Material
Precision ground alloy steel with powder coating

About 4RR80- 80 mm dia shaft Traverse unit

Traverse unit model 4RR80 for 80 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 80mm

Number of Rolling Rings :4

Side Thrust Capacity: 300 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 16.5 meters per minute

Maximum Pitch: 64 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 250 RPM

Drive Torque: 37 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.

Why Choose Our Traverse Units?

Built for high-speed, high-precision industrial environments

Easy setup and low maintenance

Proven performance in continuous production

Adaptable to various shaft diameters and speeds

Engineered for Precision and Durability

The 4RR80 Traverse Unit is crafted from precision-ground alloy steel and powder-coated for enhanced corrosion resistance and longevity. Its robust box frame design ensures smooth and accurate left-right shaft movement, even in demanding 24x7 industrial environments. This ensures dependable performance for winding, unwinding, and other material processing needs.

Simple Operation and Minimal Maintenance

Operating via a reliable manual/mechanical linkage drive, the 4RR80 requires no electrical power or pressure input, simplifying integration into existing machinery. Maintenance demands are low-periodic greasing of linkage pivots is all that's needed, and replaceable components like springs and guide bushings make servicing straightforward.

Versatile and Compatible

This traverse block is compatible with a wide range of applications, including slitter rewinders, winders, unwinders, laminators, packaging, textile, and printing equipment. With adjustable traverse stroke and custom models available, it adapts effortlessly to different industrial requirements, providing consistent, accurate, and noise-optimized operation (<60 dB).

FAQ's of 4RR80- 80 mm dia shaft Traverse unit:

Q: How is the 4RR80 shaft traverse unit installed on industrial machinery?

A: The 4RR80 is designed for direct mounting onto standard industrial frames using provided mounting bolts, making integration into existing machinery quick and straightforward.

Q: What maintenance is required for the 4RR80 traverse unit and when should it be performed?

A: Routine maintenance involves periodic lubrication of manual grease points at the linkage pivots. This should be done based on operating hours or machine usage to ensure smooth and reliable performance.

Q: Where can the 4RR80 traverse unit be used effectively?

A: It is ideal for use with slitter rewinders, winders, unwinders, laminating, packaging, textile, and printing machines, offering precise shaft traversal in diverse industrial environments.

Q: What process ensures the 4RR80 delivers accurate shaft movement?

A: The hardened steel dual spring mechanism and precision ground alloy steel guides enable traverse accuracy within 1 mm, ensuring repeatable, smooth left-right shaft movements.

Q: How can the adjustable traverse stroke of the unit benefit my operation?

A: The adjustable traverse stroke (typically 10 mm to 200 mm) allows customization for specific application needs, enhancing process flexibility and compatibility with various materials or shaft formats.

Q: What are the advantages of the 4RR80's manual/mechanical operation?

A: Manual/mechanical operation means no external power is needed, reducing installation complexity and operational costs while maximizing reliability and uptime.
