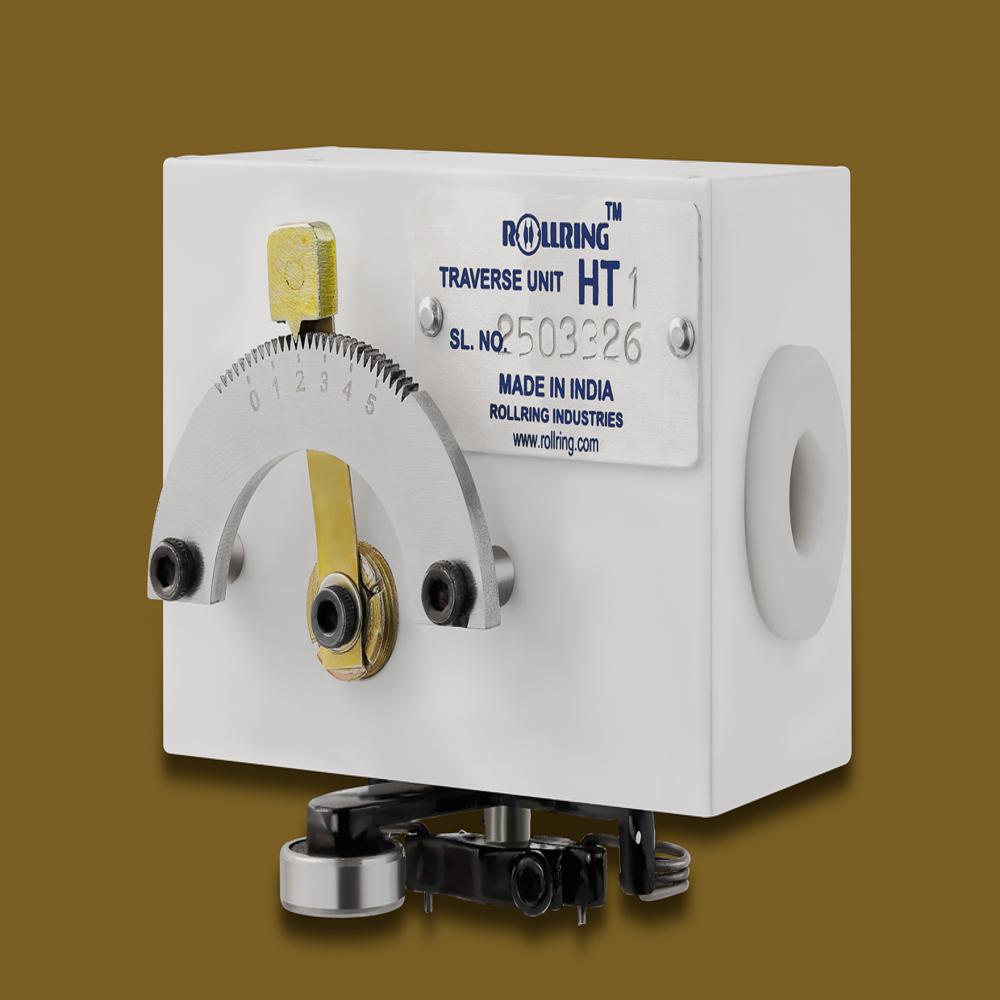

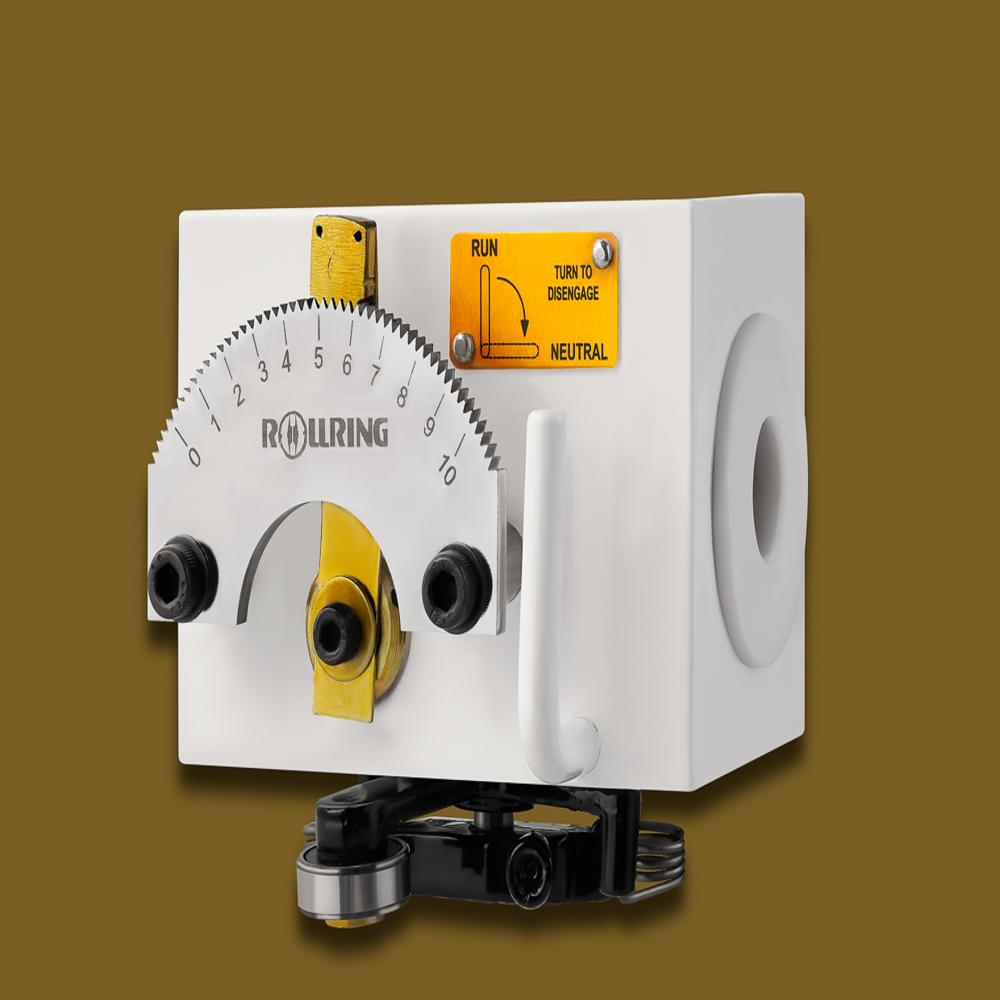

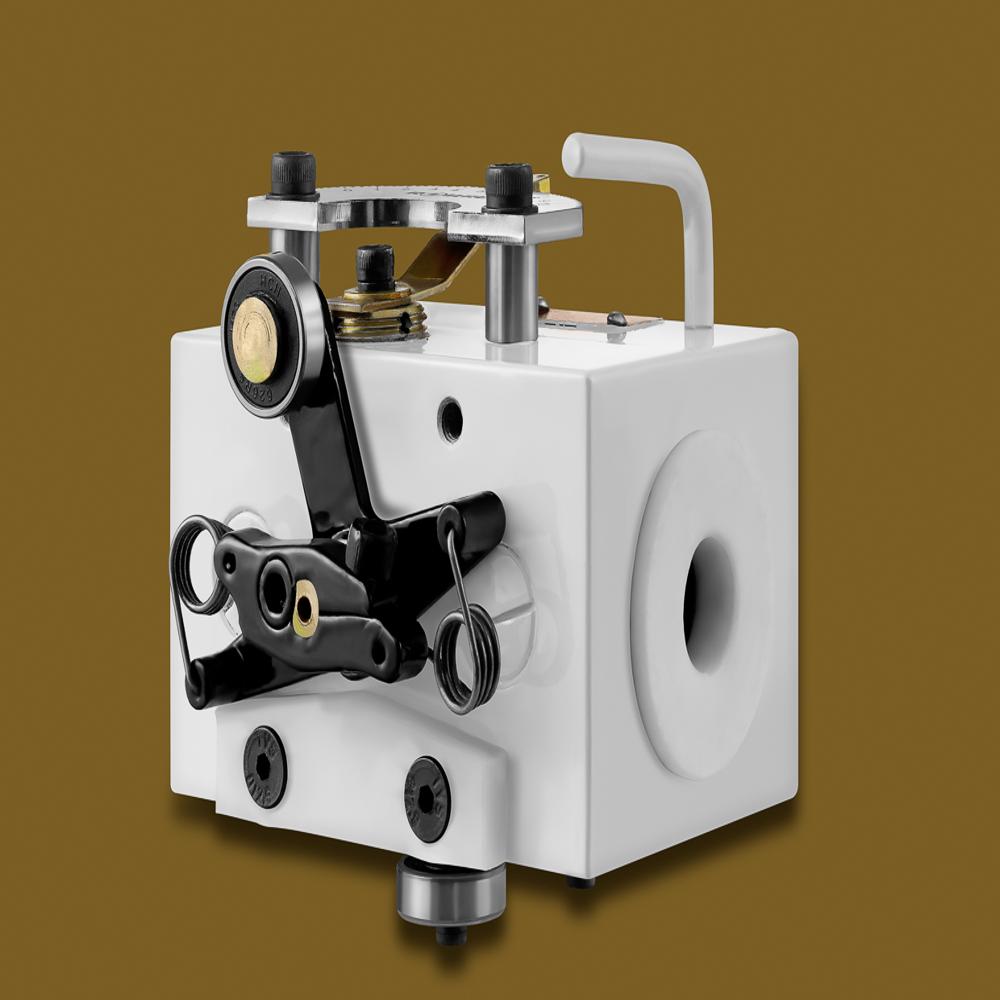

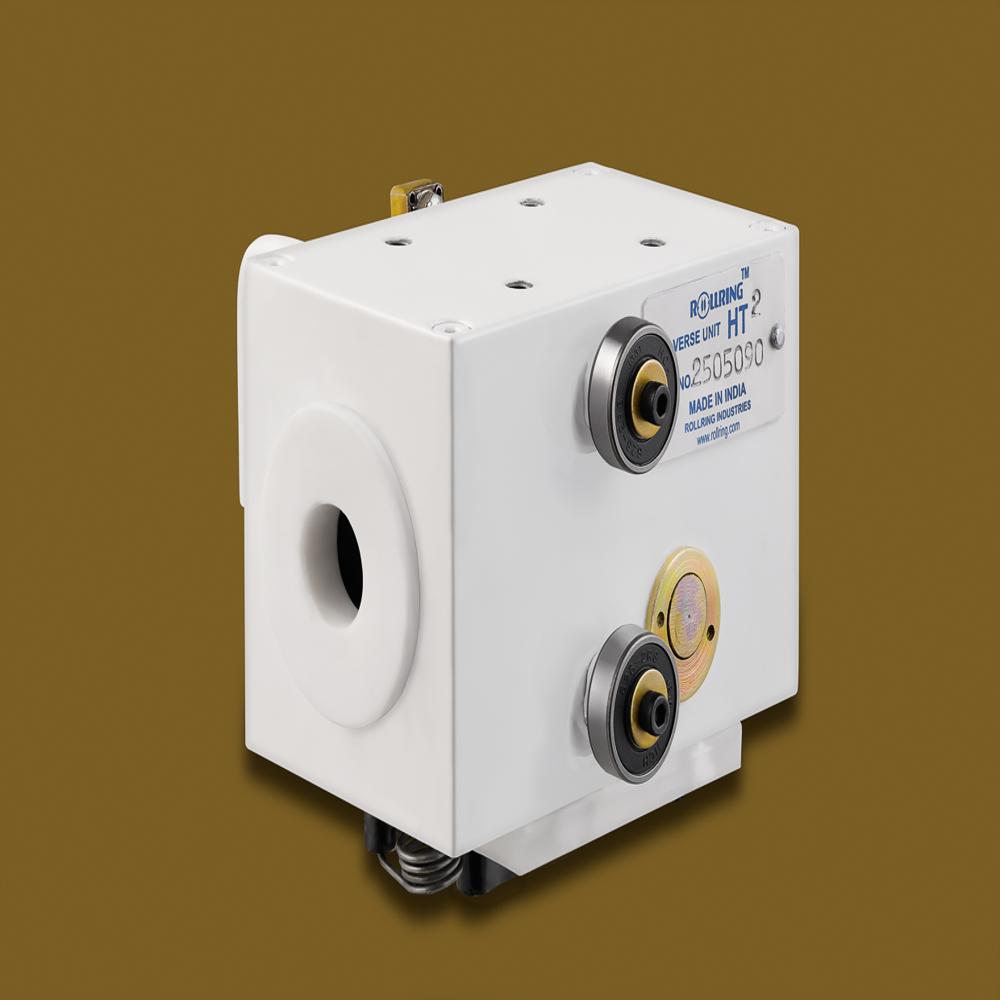

HT1- 10 MM dia shaft Traverse Unit

Price 7280.0 INR/

Get a Price/Quote

MOQ : 1

HT1- 10 MM dia shaft Traverse Unit Specification

Machine Type
Textile/Filament Machinery Accessory

Accuracy
High Precision Traverse

Connectivity Options
Shaft mounting, mechanical linkage

Frame Type
Solid Rectangular Block

Features
Robust design, anti-corrosive finish, smooth movement, easy installation

Control System
Mechanical

Production Capacity
Custom/As per requirement

Lubricating System
Sealed ball bearings require minimal lubrication

Drive
Manual/Mechanical

Model No
HT1

Operating Temperature
0C to 60C

Noise Level
Low

Product Type
Traverse Unit

Technology
Precision Linear Mechanism

Power Source
Manual/Mechanical

Operating Type
Manual/Mechanical

Surface Treatment
Anodized/Coated

Dimension (L*W*H)
Custom/As per design (Approximately 120mm x 90mm x 70mm)

Weight (kg)
Approx. 1.5 kg

Color
White/Metallic

Warranty
2 YEARS

Usage & Applications
Guiding and traversing shaft for winding and linear movement in textile, wire, and filament machinery

Mounting Options
Bolt-on mounting

Shaft Diameter Compatibility
10 mm

Maintenance
Low

Interchangeable Parts
Yes, rollers and bearings replaceable

Roller Type
Precision ball bearing rollers

Corrosion Resistance
Yes, with surface anodization

Max Traverse Length
Customizable (Standard: up to 300 mm)

Suitable for
Textile winding, wire winding, yarn traversing, automation lines

Material
High-grade aluminum housing with steel/inox bearings

About HT1- 10 MM dia shaft Traverse Unit

Traverse unit model HT1 for 10 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 10 mm

Number of Rolling Rings :3

Side Thrust Capacity: 5 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 11.2 meters per minute

Maximum Pitch: 5.6 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 2000 RPM

Drive Torque: 0.25 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.

Why Choose Our Traverse Units?

Built for high-speed, high-precision industrial environments

Easy setup and low maintenance

Proven performance in continuous production

Adaptable to various shaft diameters and speeds

Precision and Reliability in Every Traverse

Engineered for high-precision movement, the HT1-10 MM Traverse Unit is tailored to deliver consistent and smooth shaft guidance for diverse textile and automation uses. The customizable design, robust material selection, and sealed ball bearings ensure longevity and seamless operation, even in demanding environments. Its manual/mechanical functionality is ideal for operators seeking maintenance-friendly performance.

Flexible Integration and Easy Maintenance

With bolt-on mounting and interchangeable rollers and bearings, the HT1 unit is designed for hassle-free integration and servicing. The solid rectangular block frame supports straightforward installation, while its compatibility with both manual and mechanical drives makes it versatile for different machinery setups. Low maintenance needs ensure minimal downtime and disrupt workflow less often.

FAQ's of HT1- 10 MM dia shaft Traverse Unit:

Q: How does the HT1-10 MM shaft Traverse Unit benefit textile or wire winding operations?

A: The HT1 unit ensures precise and smooth linear movement for shaft guidance, improving winding uniformity and productivity in textile and wire processes. Its anti-corrosive finish, robust design, and high accuracy minimize maintenance and downtime, enhancing operational efficiency.

Q: What is the installation process for the HT1 traverse unit?

A: Installation is straightforward thanks to its bolt-on mounting design. The unit can be securely attached to compatible machines using standard mechanical linkages, making it easy to fit into existing textile or filament machinery setups.

Q: When should rollers or bearings be replaced in this traverse unit?

A: Rollers and bearings should be replaced when there is noticeable decline in smooth movement, increased noise, or visible wear. The unit is designed with interchangeable components, allowing quick part replacement to restore optimal performance.

Q: Where is the HT1-10 MM traverse unit typically used?

A: It is commonly employed in textile winding, yarn traversing, wire winding, and other automation line applications where precise and repetitive linear guidance is required for optimal material control.

Q: What maintenance does the HT1 traverse unit require?

A: This unit features sealed precision ball bearings that require minimal lubrication and very low routine maintenance. Regular visual inspection and occasional cleaning are usually sufficient to ensure reliable operation.

Q: How does the anodized surface treatment enhance the unit's durability?

A: Anodization forms a protective layer on the high-grade aluminum housing, offering excellent corrosion resistance. This finish extends the lifespan of the unit and maintains its performance, especially in environments with moisture or chemical exposure.
