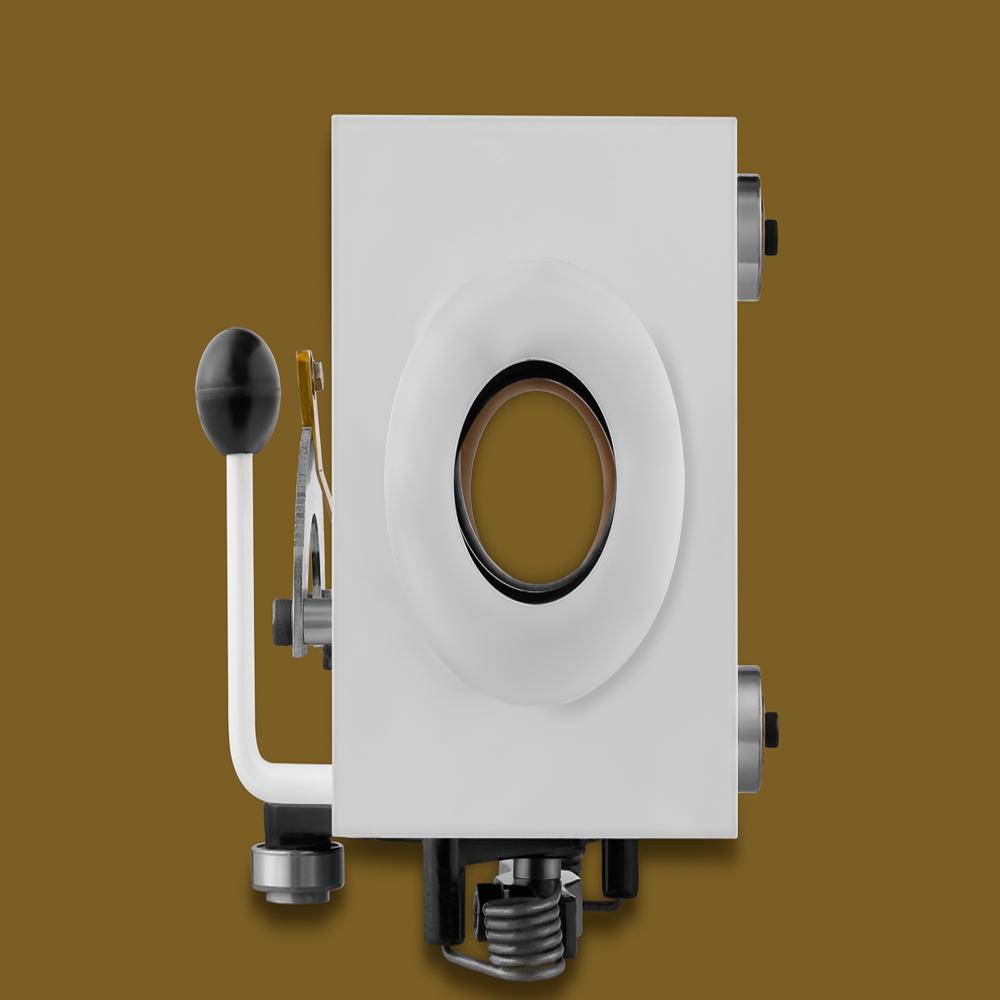

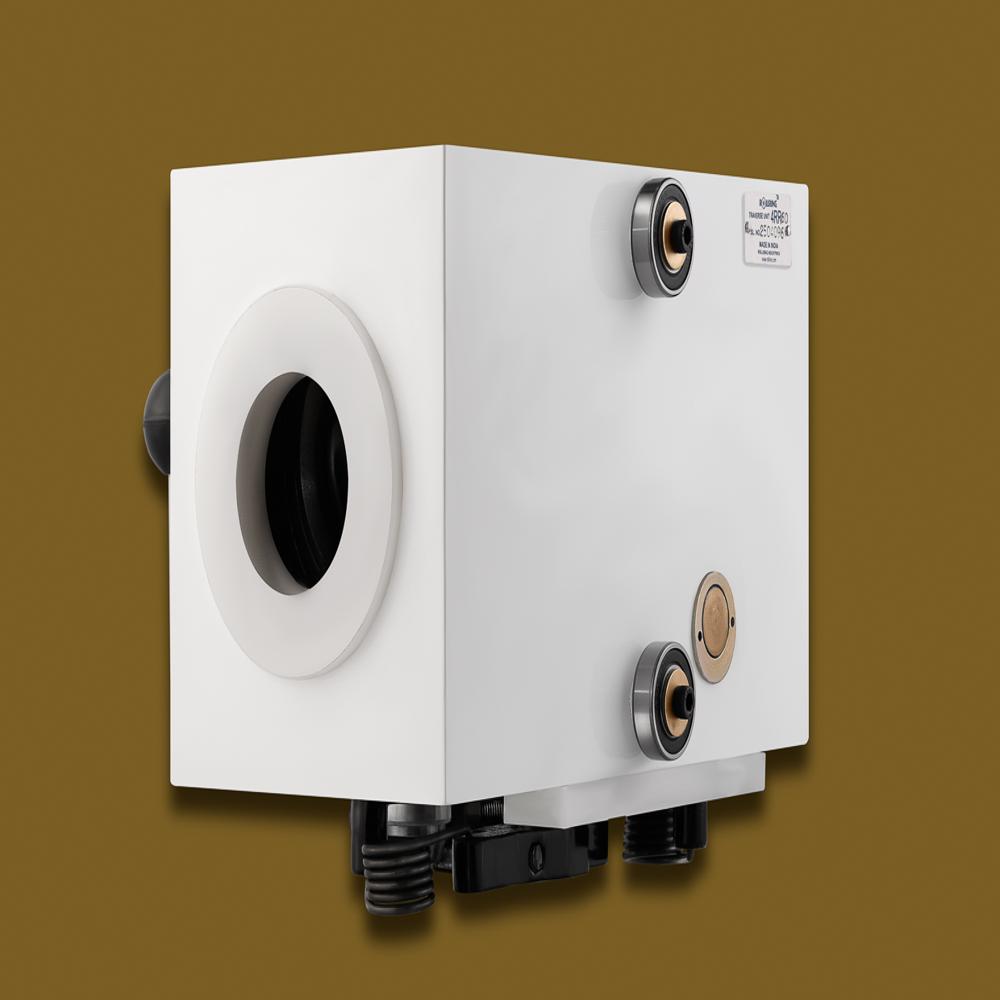

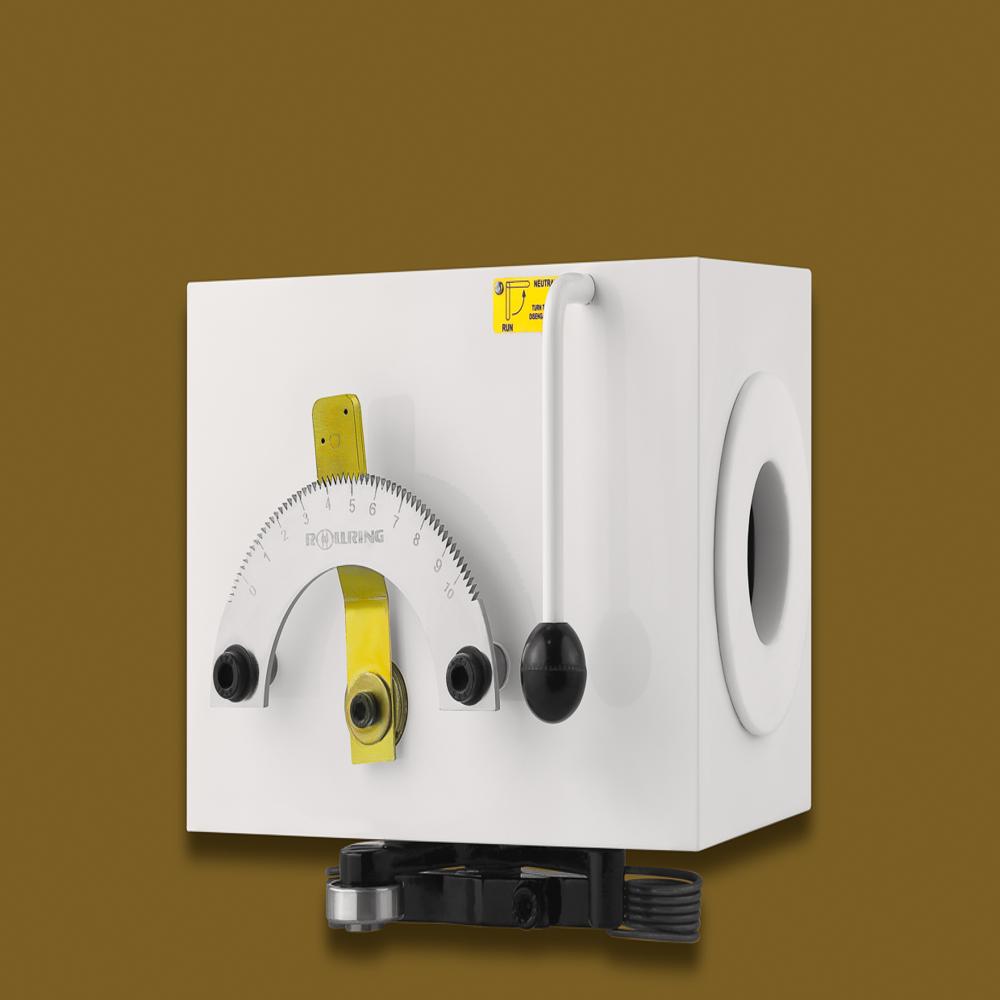

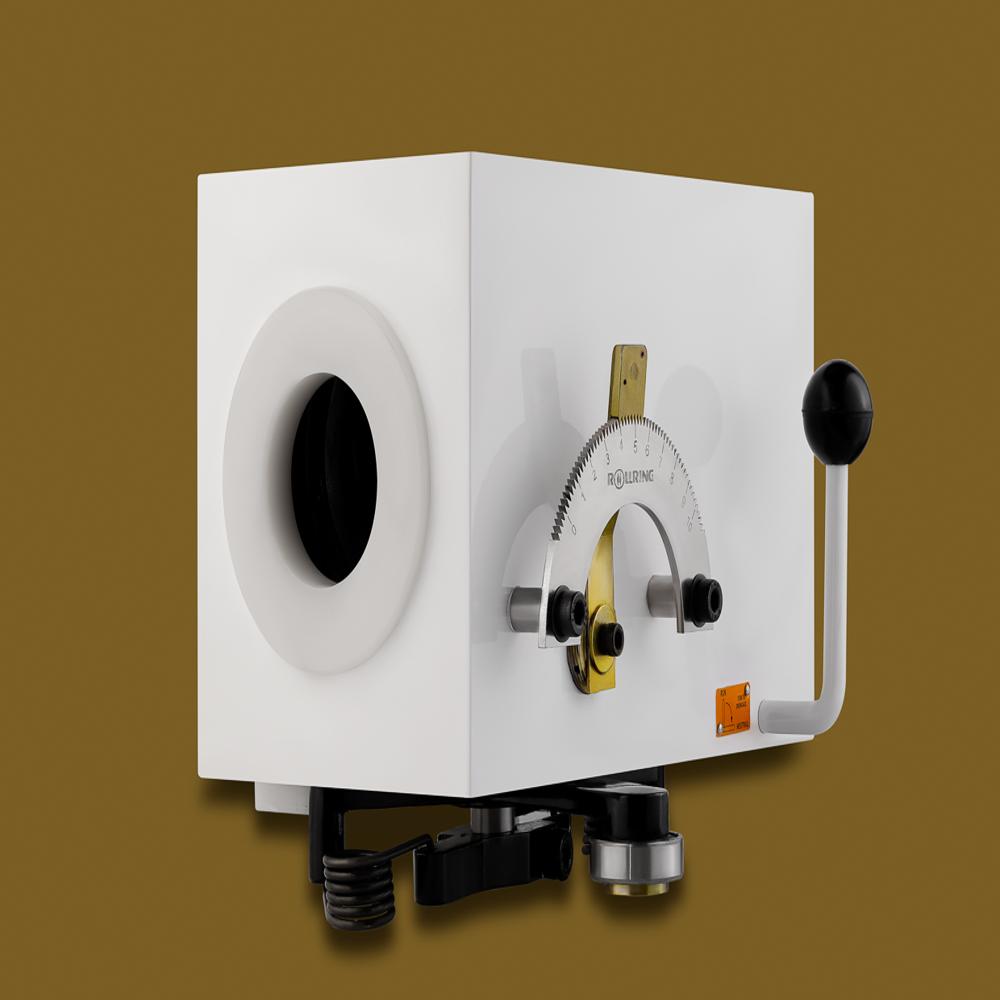

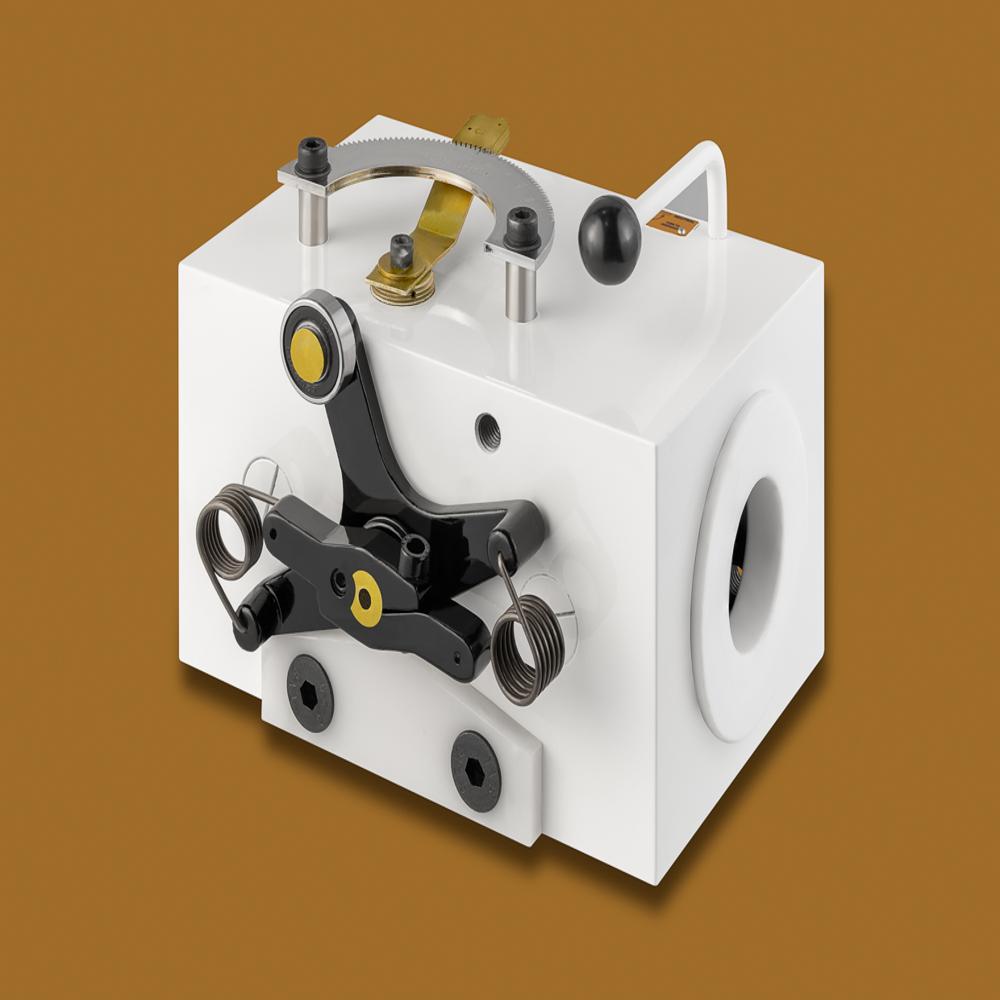

4RR50-50mm dia shaft Traverse unit model

Name: 4RR50-50mm dia shaft Traverse unit model
Brand: Rollring Industries
Price: 28980.0 INR
Availability: InStock

Price 28980.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

4RR50-50mm dia shaft Traverse unit model Specification

Frequency
50 Hz

Operating Temperature
10C to 50C

Drive
Manual / Gear Motor Driven

Model No
4RR50

Control System
Manual / Optional Motorized with Electronic Controller

Accuracy
High-precision reciprocating movement, 0.2 mm

Lubricating System
Grease Lubricated Bearings

Frame Type
Enclosed Metal Body

Voltage
220-240 V AC (standard), other options on request

Machine Type
Traverse Winding Unit

Features
Robust Construction, Easy Adjustment, High Durability, Smooth Operation

Connectivity Options
Shaft Coupling, Manual or Motor Driven

Noise Level
< 65 dB

Motor Power
Optional up to 0.5 HP

Power Rating
0.18 kW (for standard motor)

Cooling System
Natural Air Cooled

Production Capacity
Continuous / Intermittent Duty

Product Type
Traverse Unit

Technology
Precision Mechanical Traverse

Power Source
Electric Motor / Manual

Operating Type
Semi-Automatic

Power
As per motor specification (typically 0.25 HP to 0.5 HP optional)

Surface Treatment
Powder Coated / Painted

Dimension (L*W*H)
Approx. 250 mm x 180 mm x 150 mm

Weight (kg)
10-12 kg (Approx.)

Color
White

Usage & Applications
Used for precision winding on a 50 mm diameter shaft in converting, textile, foil, or paper machines

Special Features
Precision Built for Low Vibration, High Repetition Accuracy

Shaft Diameter
50 mm

Reciprocating Mechanism
Rack & Pinion with Adjustable Stroke

Application Industries
Textile, Packaging, Converting, Wire & Cable, Foil Processing

Input Type
Manual Lever / Electric Drive Interface

Working Speed
Up to 120 rpm (depends on application)

Finish
Corrosion Resistant

Mounting Options
Bolt-On / Universal Mount

Traverse Length
Up to 300 mm (customizable)

Safety
Fully Enclosed Gears and Moving Parts

Maintenance
Low, Easy Serviceable Design

Material Compatibility
Metal Shafts, Paper Cores, Plastic Tubes

Stroke Adjustment
Handwheel or Motorized - Stepless

4RR50-50mm dia shaft Traverse unit model Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About 4RR50-50mm dia shaft Traverse unit model

Traverse unit model 4RR50 for 50 mm diameter shaft

Rollring Traverse Units Precision Linear Motion Solutions

Technical Specifications

Shaft Diameter: 50mm

Number of Rolling Rings :4

Side Thrust Capacity: 116 kg
Maximum safe force before the traverse unit slips on the shaft.

Maximum Linear Speed: 18 meters per minute

Maximum Pitch: 36 mm
Linear travel achieved per shaft rotation (commonly set at dial position 10).

Maximum Shaft Speed: 500 RPM

Drive Torque: 13 kgcm

High-Performance Rollring Traverse Units

Rollring Traverse Units are engineered for precise, reliable linear reciprocating motion across a wide variety of industrial applications. Designed for durability and accuracy, these units deliver:

Automatic and Instantaneous Reversal for unidirectional and constant-speed shaft rotation.

Finely Adjustable Linear Speed using a quick lever adjustment.

Variable Stroke Lengths to match different production needs.

Operation on a Plain Round Hardened Shaft with a finely ground finish for long service life.

Industrial Applications of Rollring Traverse Units

Our linear motion solutions are used across industries for accurate material winding and traversing. They can handle delicate or heavy-duty tasks with equal precision, making them indispensable in manufacturing, processing, and assembly lines.

Common materials handled:

Flexible Materials: wires, ropes, straps, hoses, filaments, tapes, foils

Solid Materials: steel, aluminium, copper, rubber, plastic, fibre

Specialty Applications: fibre optic cables, flat materials, heavy gauge cables

From fine-gauge fibre optics to robust industrial cables, Rollring Traverse Units ensure smooth, accurate, and consistent performance.

Why Choose Our Traverse Units?

Built for high-speed, high-precision industrial environments

Easy setup and low maintenance

Proven performance in continuous production

Adaptable to various shaft diameters and speeds

Precision and Versatility Engineered In

The 4RR50 Traverse Unit stands out for its precision mechanical reciprocating technology, offering high accuracy (up to 0.2 mm) and minimal vibration during operation. It's suitable for use with metal shafts, paper cores, and plastic tubes, making it an adaptable solution across diverse industries like textile and converting. With customizable traverse lengths and adjustable strokes, it meets unique application demands efficiently.

Rugged Construction and User-Friendly Maintenance

Constructed with an enclosed metal frame and corrosion-resistant finish, the 4RR50 is built to withstand tough industrial environments. Maintenance is minimized thanks to a grease-lubricated bearing system, easy-access design, and fully enclosed moving parts for safety. Its natural air-cooled system ensures dependable performance, while stroke adjustments can be made seamlessly by hand or motor.

FAQ's of 4RR50-50mm dia shaft Traverse unit model:

Q: How is the stroke length adjusted on the 4RR50 traverse unit?

A: The stroke length can be adjusted either manually with a handwheel or motorized adjustment. This allows for stepless, precise control, making it easy to adapt the traverse length to specific requirements up to 300 mm.

Q: What materials and applications is the 4RR50 model compatible with?

A: The traverse unit is compatible with metal shafts, paper cores, and plastic tubes. It is commonly used in precision winding applications within the textile, packaging, converting, wire & cable, and foil processing industries.

Q: When should routine maintenance be performed on the 4RR50 unit?

A: Routine maintenance schedules depend on application intensity, but with its low-maintenance, grease-lubricated bearings and robust design, periodic inspections and lubrication suffice. Always follow the manufacturer's guidelines for service intervals and use only approved lubricants.

Q: Where can the 4RR50 traverse winding unit be installed?

A: Thanks to its bolt-on and universal mounting options, the 4RR50 can be easily installed on various machines across a wide range of industrial settings, including textile winders, converting machinery, and packaging systems.

Q: What benefits does the precision mechanical traverse mechanism provide?

A: The precision rack & pinion mechanism delivers high repetition accuracy with low vibration, ensuring even winding throughout the working speed range. This leads to better product quality, reduced material waste, and more efficient operation.

Q: How does the fully enclosed design enhance safety during operation?

A: All gears and moving parts are fully enclosed, preventing accidental contact and reducing the risk of injuries. This safety feature, combined with low noise levels (<65 dB), promotes a safer working environment.

Q: Can the traverse unit operate in both manual and automated systems?

A: Yes, the 4RR50 offers flexibility with both manual lever operation and electric drive or motorized control, supported by a controllable input and an optional electronic controller, making integration straightforward in both semi-automatic and automated setups.
